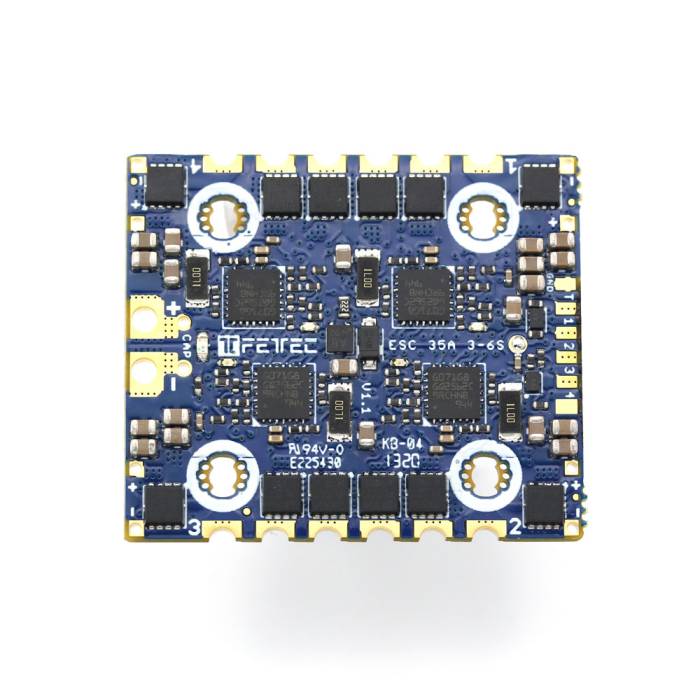

FETtec 35A V1.1 4-in-1 ESC - 20x20

More KISS gear! This FETtec 6S capable 4-in-1 ESC features KISS FC passthrough and fits on 20x20 mounting holes. Lots of capability in this tiny ESC!

Specifications

• Active current limiting @ 35A
• Input voltage: 3S-6S
• High-quality 40V MOSFETs
• STM32G071 @ 64MHz
• 128 kHz Motor PWM
• Full sine wave control
• Soldering holes for up to 5 additional capacitors
• KISS FC Passthrough
• Betaflight Passthrough (available in 4.1)
• Automatic input signal detection:
• Dshot 300-2400
• PWM
• OneShot42/125
• OneWire BUS with up to 8kHz loop time (one cable for all Motorsignals and Telemetry)

• New version 1.1
• more space around battery pads
• one blue LED for each ESC onboard
• new protection circuit for the signal IOs
• no more capacitors close to the mounting holes

Dimensions

• 30mm wide x 35mm long
• Mounting hole: 20mm x 20mm, M2 expandable to M3

Firmware

• New FETtec Firmware
• FETtec Configurator for updates, configuration, and telemetry. Standalone for MacOS, Windows 32 & 64 bit and Chrome Plugin

Includes

• FETtec 4in1 ESC 3 - 6S 35A
• Capacitor 470µF 50V, ESR < 1ohm
• JST-SH 8 Pin Cable

Recommendation

• For 6S batteries, we recommend using a FETtec Spike Absorber

Available downloads

• Download FETtec ESC 35A Manual
• Download Betaflight Passthrough Guide
