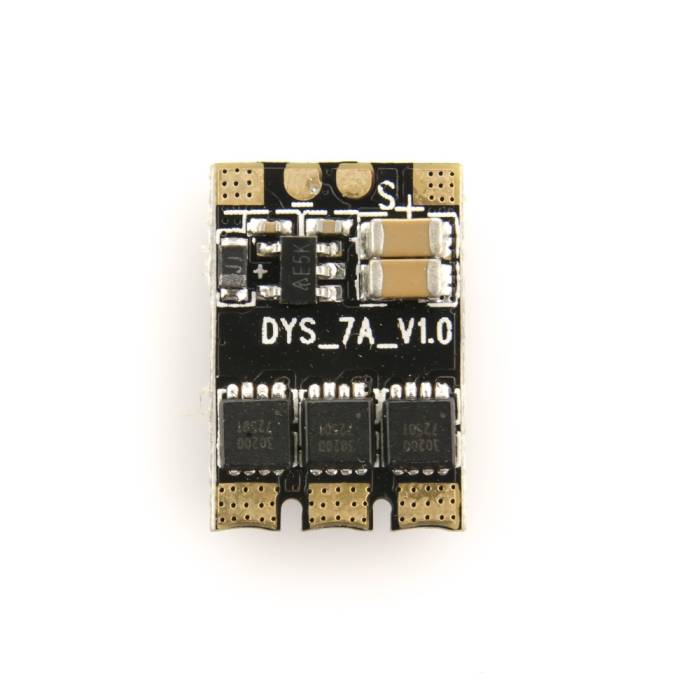

DYS XSD7A 7A Blheli_S 1-2s FPV Racing Brushless ESC

The DYS XSD7A 7A Blheli_S 1-2s FPV Racing Brushless ESC Dshot300/600 Multishot Oneshot42/125.

Features

• BLHeli_S ESC with Hardware generated PWM synchronous to MCU yields ultra-quiet motor performance.
• Utilizes high-performance EFM8BB21 50MHz MCU
• Firmware upgradable via signal wire (works with USB Linker for XM series)
• Supports Motors with super high KV (EFM8BusyBee 50MHz can handle up to 500k eRPM)
• Supports Dshot600, Dshot300, Multishot, Oneshot42, Oneshot125
• High-current burst rating
• High-Resolution Throttle steps

Specifications

• Brand name: DYS
• Item name: XSD7A
• Input voltage: 1-2s Lipo
• BEC: NO
• Size(mm)L*W*H: 16.4*11.2*4mm
• Weight: 0.83g
• Cont Current(A):7A
• Burst Current(A)>10s:9A

Includes

• 1x XSD7A ESC
