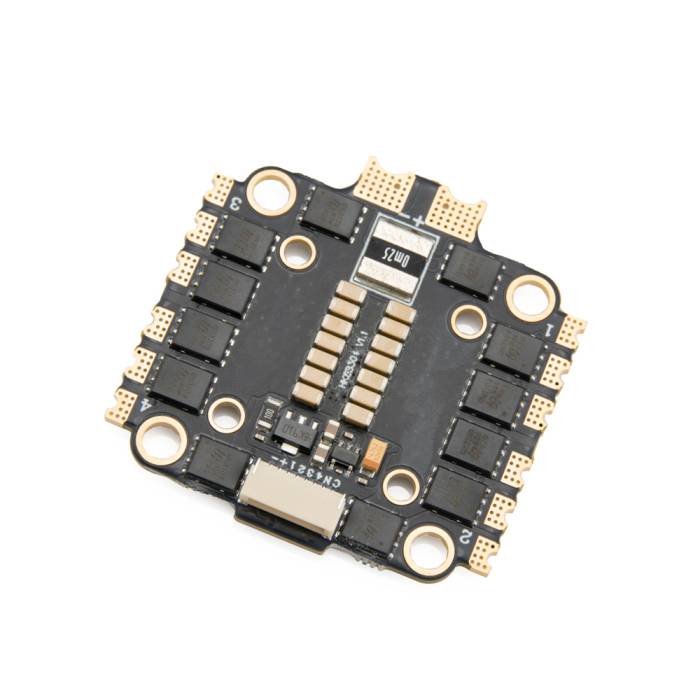

DYS 45A 2-6S BLHeli_S DShot 4-in-1 ESC
$49.99
Out of Stock
Only left for same day shipping. Order now!
DYS 45A 2-6S BLHeli_S DShot 4-in-1 ESC
The DYS 45A 4-in-1 ESC is an ideal choice for an ESC platform where build space is at a premium! This 45A ESC supports DShot 150,300 and 600, Oneshot125, Oneshot42, and Multishot protocols.
About this product
The DYS 45A 4-in-1 ESC is an ideal choice for an ESC platform where build space is at a premium! This 45A ESC supports DShot 150,300 and 600, Oneshot125, Oneshot42, and Multishot protocols. Comes with a 20x20mm and 30.5x30.5mm mounting pattern.
Specifications
- Product Size: 44x44x6mm
- Packaging Size: 62x33mm
- N.W.:14g
- G.W.: 27g
- Hole Diameter: M4
- Operation Voltage: 2-6S
- Max Continous Current: 45A
- Max Peak Current: 50A
- Software: BLHeliSuite
- Mounting Hole: 20x20mm/30.5x30.5mm
- Support: DShot150/300/600, PWM
- Oneshot125, Oneshot42, and Multishot
- Firmware Version: BL16.7
Includes
- 1 x DYS 45A 4-in-1 ESC
- 1 x Data Cables
- 1 x Manual
- 1 x XT-60 Connector
- Silicone Grommets
More Information
| SKU | 14593 |
|---|---|
| UPC (GTIN) | 789862852308 |
| Manufacturer | DYS |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 45 Amps |
| Voltage | 2-6 Cell (7.4v-22.2v) |
| Number of ESC's | 4 ESC's in 1 |
