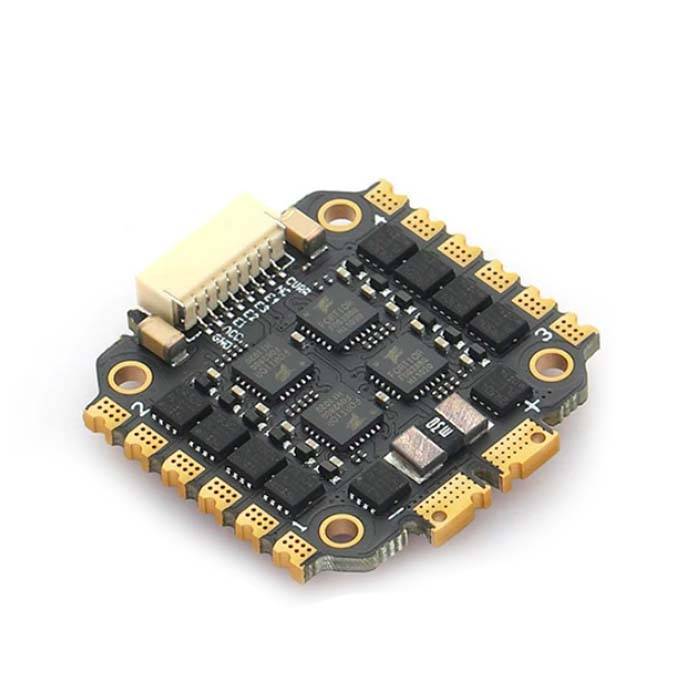

Diatone Mamba MINI F40 40A BLS Dshot600 4-in-1 ESC

Diatone Mamba MINI F40 40A BLS Dshot600 4-in-1 ESC

Back Ordered

Only left for same day shipping. Order now!
Diatone Mamba MINI F40 40A BLS Dshot600 4-in-1 ESC
The Diatone Mamba F40_BLS MINI Dshot600 4-in-1 is a 20x20 ESC that provides a high-power BLS in a small, but easy-to-install package. Recommended for 3", 4" and 5" ultralight builds!

About this product

The Diatone Mamba F40_BLS MINI Dshot600 4-in-1 is a 20x20 ESC that provides a high-power BLS in a small, but easy-to-install package. Recommended for 3", 4" and 5" ultralight builds!

Specifications

  • INPUT VOLTAGE: 2~5S Lipo (8.4V~25.2V)
  • CONTINUE CURRENT: 40A×4
  • BURST CURRENT: 45A (10S)
  • BEC: No
  • TargetBLHeli_S CH40
  • SOFT: Dshot300/600
  • TVS Protection: Yes
  • MOUNTING: 20mm, M2/M3
  • Recommend For : 3inch / 4inch / Ultralight 5inch

Includes

  • 1 x Diatone Mamba F40 40A 6S BLS MINI 4-in-1 ESC
  • 2 x 8pin sh1.0
  • 1 x AMASS Original XT60
  • 1 x High-Frequency 470uF/35V

More Information

SKU 16403
Manufacturer Diatone
UPC (GTIN) 764613336399
Item Returns This item can be returned
