Diatone Mamba F55 55A 6S BLS 4-in-1 ESC
$44.99
Out of Stock
Only left for same day shipping. Order now!

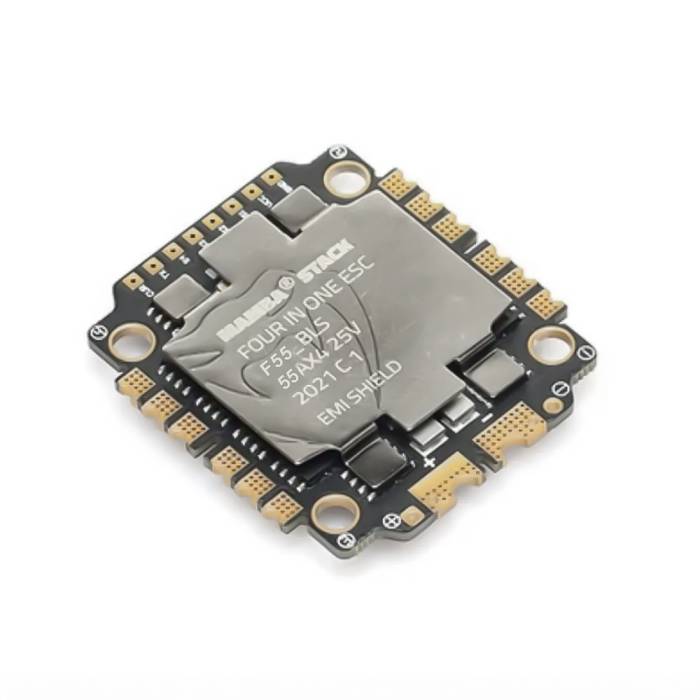

Diatone Mamba F55 55A 6S BLS 4-in-1 ESC
The Diatone Mamba F55_BLS 6S 4-in-1 is a 30x30 ESC that provides a high-power BLS in a small, but easy-to-install package. This 4-in-1 ESC is capable of supporting high power builds up to 6S.
About this product
The Diatone Mamba F55_BLS 6S 4-in-1 is a 30x30 ESC that provides a high-power BLS in a small, but easy-to-install package. This 4-in-1 ESC is capable of supporting high power builds up to 6S.
Specifications
- INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
- CONTINUE CURRENT: 55A×4
- BURST CURRENT: 60A (10S)
- BEC: NO
- SOFT: Dshot300/600
- Target: BLHeli_S CH40
- TVS Protection: Yes
- MOUNTING: 30.5mm/M3
- Supply : 8pin sh1.0 ×2
- AMASS Original XT60
- High-Frequency 470uF/35V
Includes
- 1 x Diatone Mamba F55_BLS 55A 6S 4-in-1 ESC
More Information
| SKU | 16400 |
|---|---|
| UPC (GTIN) | 764613336429 |
| Manufacturer | Diatone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 55 Amps |
| Voltage | 3-6 Cell (11.1v-22.2v) |
| Number of ESC's | 4 ESC's in 1 |
