BETAFPV 16A 3-4S BLHeli32 ESC V2.0

This BLHeli32 16A ESC is the customized ESC for the Beta85X. This is one of the first whoops to come with BLHeli_32 ESC and support up to 4S current!

BLHeli_32 is the 3rd generation ESC firmware after BLHeli and BLHeli_S, which is written for ESC‘s that utilize 32-bit MCU. With the increase in processing power, faster input signals with lower latency and higher update rate would be possible in BLHeli_32, such as Dshot1200!

Specifications

ESC

• Support BLHELI_32
• Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
• Input voltage: 3-4S lipo
• Continuous current: 16A
• Peak current: 19A
• Firmware target: BETAFPV-16A-32bit
• MCU: STM32F051K66

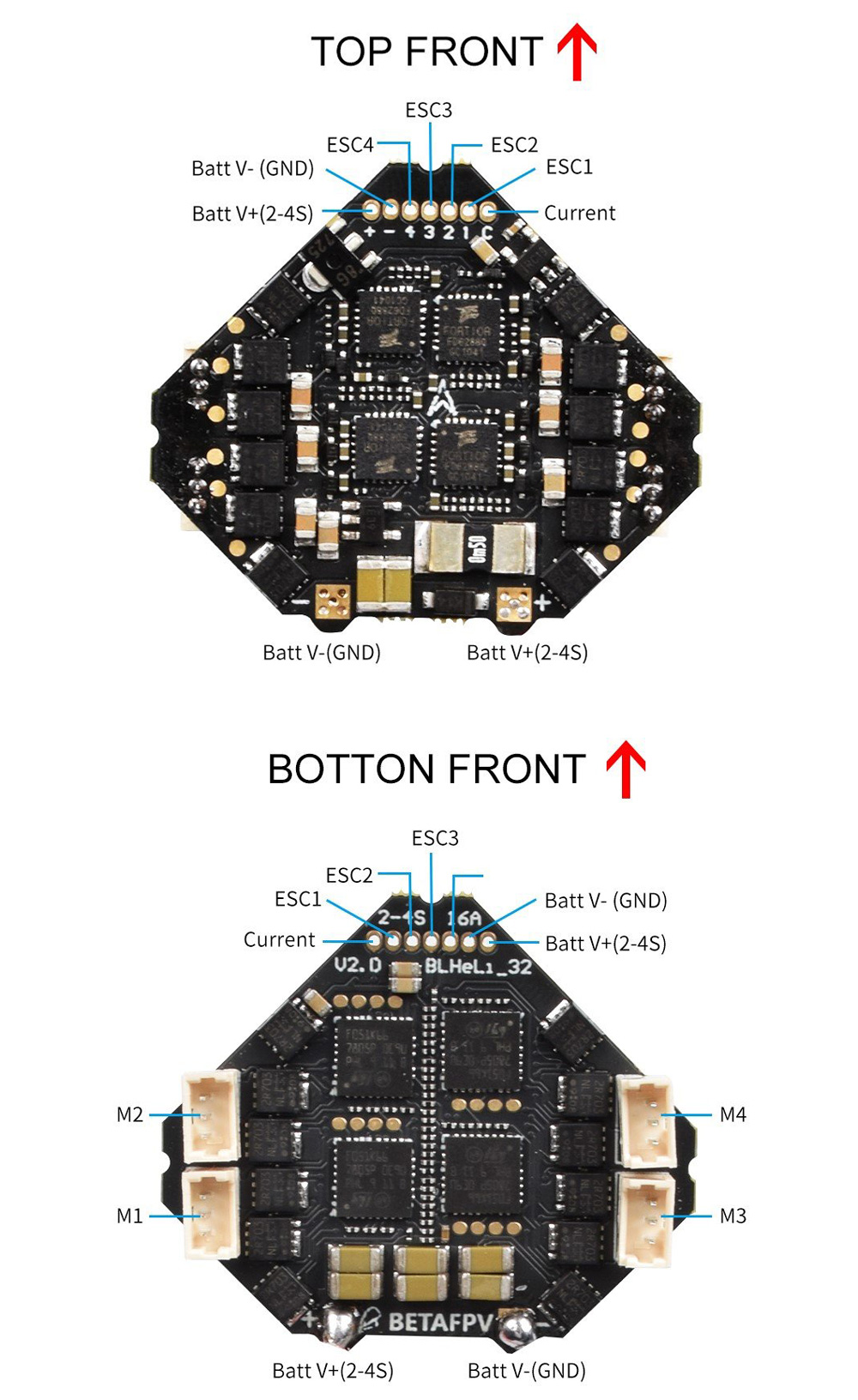

• Motor Connectors: 1.25mm header pins connector
• Weight: 4.4g (7.7g with XT30 cable)

Includes

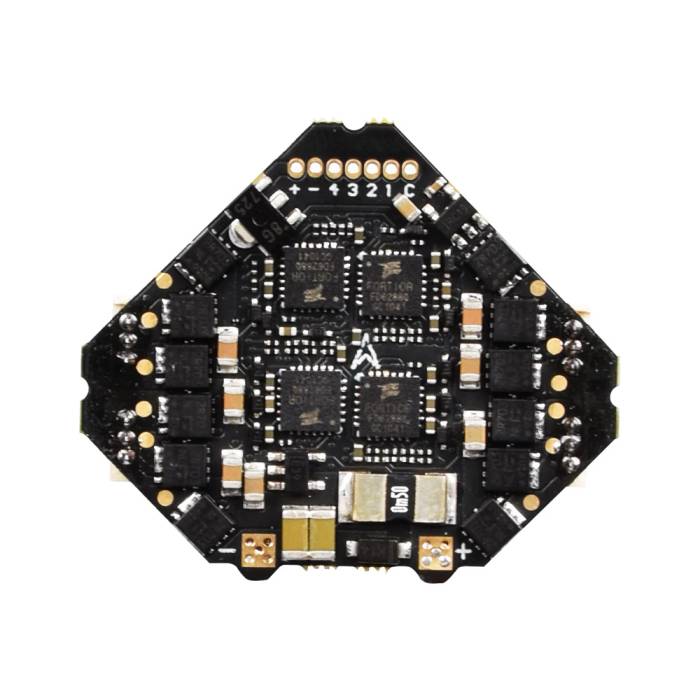

• 1 * 4in1 16A ESC board
• 4 * M1.2x4mm screws
• 4 * M1.4x5mm screws
• 4 * Anti-vibration rubber dampers
