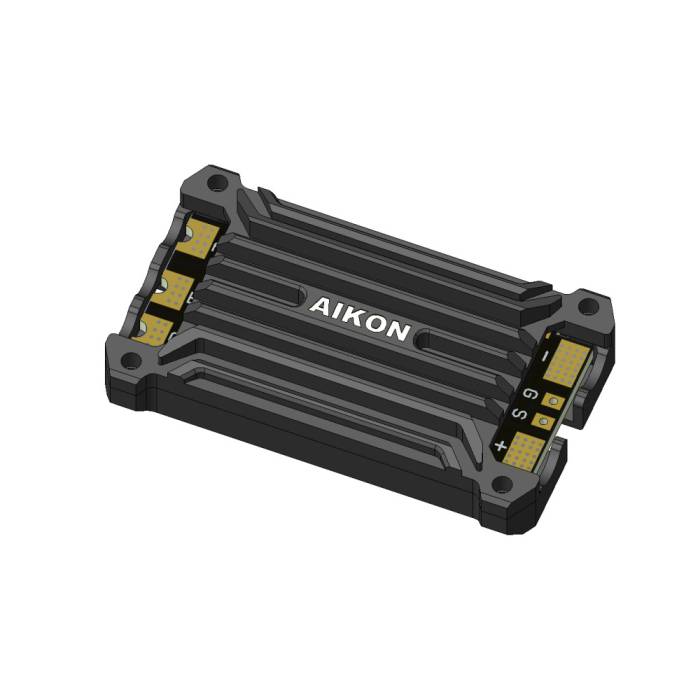

AIKON AK8 80A 2-8S BLheli_S ESC
$29.99
In Stock
Only left for same day shipping. Order now!
AIKON AK8 80A 2-8S BLheli_S ESC
The AIKON AK8 80A 2-8S BLHeli_S ESC is a high-performance speed controller built for demanding FPV drone setups. Designed with high-grade MOSFETs for efficient current delivery, it supports DShot, Multishot, and OneShot protocols for smooth throttle response and reliable performance.
About this product
The AIKON AK8 80A 2-8S BLHeli_S ESC is a high-performance speed controller built for demanding FPV drone setups. Designed with high-grade MOSFETs for efficient current delivery, it supports DShot, Multishot, and OneShot protocols for smooth throttle response and reliable performance. Powered by BLHeli_S firmware, it ensures low latency, stable flight, and precise motor control—perfect for freestyle and racing drones.
Features
- Improved heat dissipation for higher efficiency and cooler operation
- 40V low-resistance MOSFETs for efficient power delivery
- Integrated CNC-machined top and bottom heat sinks
- Designed for demanding FPV drone applications
- High power output in a compact form factor
- Durable and cost-effective design
- Supports 3–8S LiPo input
Specifications
- ESC Protocols: DSHOT300 / DSHOT600
- MOSFET: High-performance MOSFET
- Burst Current: 100A (10 seconds)
- Dimensions: 26mm x 42mm
- Current Sensor Scale: 200
- Continuous Current: 80A
- MCU: EFM8BB21F16G
- Power Input: 3–8S LiPo
- Firmware: C_H_40 24k
- ESC Telemetry: No
- Mounting: N/A
- Weight: 32g
Includes
- 1x AIKON AK8 80A 2-8S BLheli_S ESC
- 1x 50V 1000UF Capacitor
- 2x Power Cable - 200mm
- 1x Signal Wire - 200mm
More Information
| SKU | 23291 |
|---|---|
| UPC (GTIN) | 723326375026 |
| Manufacturer | Aikon |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | Single Arm ESC |
| ESC Firmware | BLHeli_S |
| Amps | 80 Amps |
| Voltage | 3-6S |
| Number of ESC's | Single ESC |
