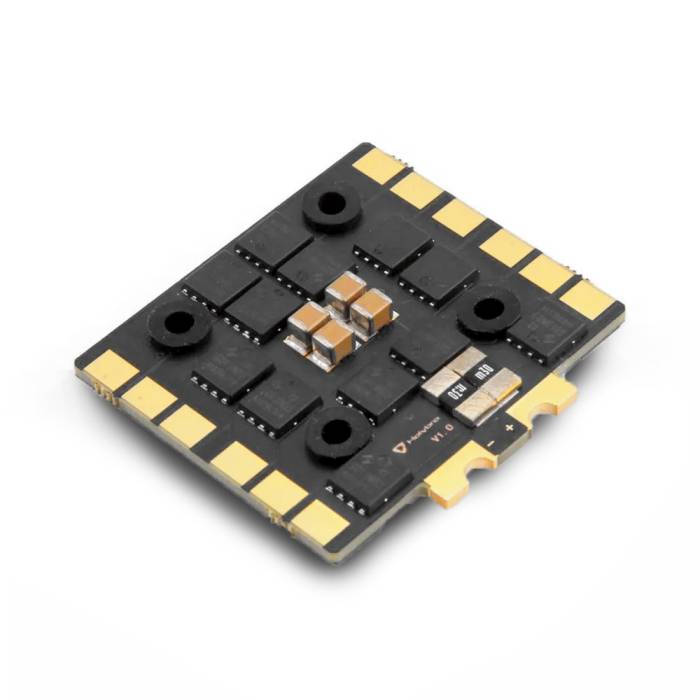

Holybro Tekko32 F4 BigFET 50A 4-in-1 ESC - Mini 20x20
Holybro Tekko32 F4 BigFET 50A 4-in-1 ESC - Mini 20x20
$69.99
Holybro Tekko32 F4 BigFET 50A 4-in-1 ESC - Mini 20x20
The Tekko32 F4 BigFET 50A ESC is made for those that use a 20x20 mount and also need the power of a big MOSFET.
About this product
dummy
The Tekko32 F4 BigFET 50A ESC is made for those that use a 20x20 mount and also need the power of a big MOSFET. The F4 MCU & high-quality onboard big MOSFET will provide smooth control, quick response, and big power for racers and freestyle pilots.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- New F4 MCU, much faster than F3 & F0
- 20x20 Mount design with big MOSFET
- PWM output up to 96K (default 48K)
- Separate drive & control circuit
- 4-6S BLHeli_32 ESC
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Supports: DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- Mounting holes: M4 30.5x30.5mm (M3 grommets included)
- Amperage meter scale ratio: 168
- Current Sensor: Onboard AnalogÂ
- Continuous Current: 50A x4
- Dimensions: 39x36.5x6mm
- ESC Telemetry Support: Yes
- Burst Current: 60A x4
- Firmware:Â BLHeli_32
- Weight: 11.8g
- LiPo: 4-6S
- BEC: No
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Includes
- 1x Holybro Tekko32 F4 BigFET 4in1 50A ESC
- 1x 8pin to 8pin 1mm pitch 65mm Cable
- 1x 8pin to 8pin 1mm pitch 25mm Cable
- 4x M3 Anti-Vibration Silicone Grommet
- 1x 1000uF 35v Electrolytic Capacitor
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 18286 |
---|---|
UPC (GTIN) | 764613346206 |
Manufacturer | Holybro |
NDAA Compliant | No |
Mounting Pattern | 20x20mm |
Item Returns | This item can be returned |
