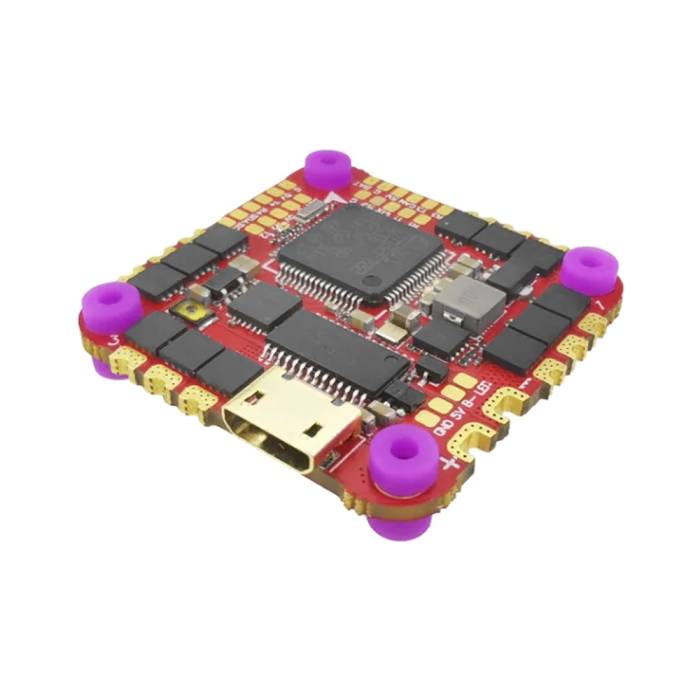

This HAKRC AIO Board features a brushless F722 flgiht controller and a 40A 2-6S BLHeli_S ESC. This version carries an external USB. This is an ultra-light 7g brushless AIO flight controller!! This FC has a strong performance and can handle 40A continuous current and up to 6S.

VIDEO: HAKRC F722 AIO Whoop Flight Controller

Features

• PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation
• MOS adopts imported 40V high current resistance MOS, long life and strong load capacity
• High-quality Japanese Murata capacitors with strong filtering performance
• Industrial grade LDO for high temperature resistance.

Specifications

• Mounting Pattern: 25.5mm-26.5mm
• Packing size: 63x32mm
• Product Net weight: 7g
• Package Weight: 25g
• Size: 32x32mm

F722 FLIGHT CONTROLLER

• LED: Support WS2812 and other programmable
• Flight control firmware version: HAKRC F722D
• Receiver: CRSF / Frsky/ Futaba/ Flysky/
• TBS Crossfire/ DSMX: DSM2 receiver
• Sensor: Built-in current sensor
• CPU: STM32F722RET6
• Barometer: integrated
• IMU: MPU6000
• OSD: AT7456E
• BEC: 5V/3A
• Uart: 5

40A ESC

• Protocol support: PWM, Oneshot125, Oneshot42,
• Multishot, Dshot150, Dshot300, Dshot600
• Firmware version: BLHELI _S (G- H-30)
• Firmware support: BLHELI_ S
• Current meter proportional value: 450
• Input voltage: 2S-6S Lipo
• Continuous current: 40A
• Peak current: 50A

Includes

• 1x HAKRC AIO Board - Brushless F722 FC + 40A 2-6S BLHeli_S ESC
• 1x 180mm External Type-C USB Board
• 1x SH1.0/7P Single-Head Cable
• 4x Shock-Absorbing Ball
• 1x 270uf/35V Capacitor
• 1x XT30 Power Cord
