Egodrift Jetstream Freerange 2407 1500KV Motor

More Views

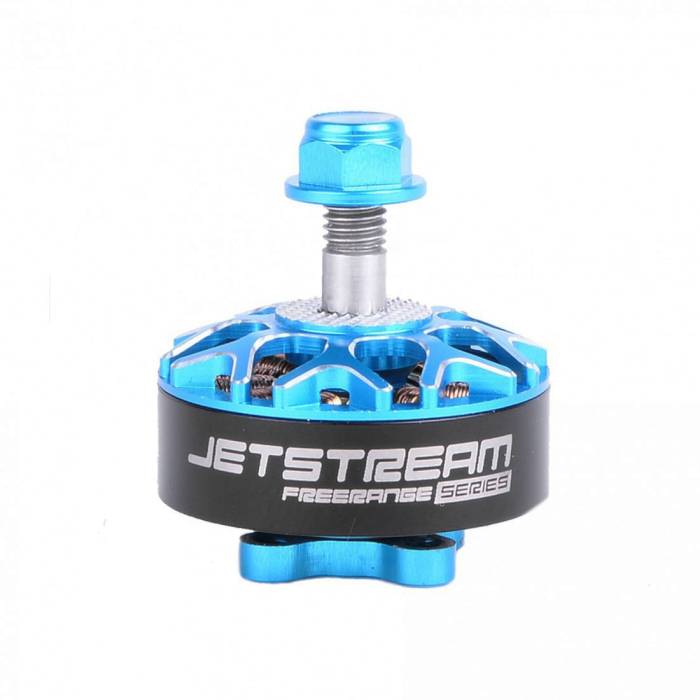

Egodrift Jetstream Freerange 2407 1500KV Motor
The Jetstream Freerange series 2407 motors feature a stunning ice-blue bell design, open bottom (of course with our screwed hollow shafts) and high-temperature copper wires.
In Stock
$24.99
Description

The Jetstream Freerange Motors were designed for medium to long range freestyle runs and efficient flights on large (7-8") inch props on 4S - or 6S freestyle motor on 5-6" props. The Jetstream Freerange series 2407 motors with 1500kV feature a stunning ice-blue bell design, open bottom (of course with our screwed hollow shafts) and high-temperature copper wires.

Features

  • Hand-wound (like all EGODRIFT motors)
  • Stunning ice-blue bell design
  • Open base with screwed bell
  • High-temperature copper wire
  • Recommended for up to 6S batteries

Specifications

MANUFACTURER EGODRIFT
STATOR SIZE 2407
MOTOR CONFIGURATION 12N14P
MOTOR WEIGHT 36g (excl. wires)
BASE COLOUR Ego Blue
WIRE COLOUR Copper
MOTOR WIRE TYPE High-temperature copper wire
MOTOR SHAFT Hardened steel (Hollow)
SHAFT DIAMETER 5.0 mm
LIPO CELLS 4S, 5S, 6S
MAGNETS N52 Arc
MOTOR KV 1500 kV
ROTATIONS/MIN/VOLT (KV) 1500kV
STATOR DIAMETER 24 mm
STATOR HEIGHT (MM) 7 mm
STATOR LAMINATION 0.15 mm (+)
DIAMETER FIXING HOLES (MM) 3,0 mm
CONNECTION Wires
DESIGNER
  • Vincent Offenbeck
  • Michael Pallinger
  • Zhai Qian
WHAT'S IN THE BOX
  • 1 x Jetstream 2407 / 1500kV brushless motor
  • 1 x M5 Anodized Aluminium Lock Nut, Ice Blue
  • 4 x M3x6mm Steel Screws Black
  • 4 x M3x8mm Steel Screws Black
Additional Information
SKU 9658
Manufacturer Egodrift
UPC (GTIN) 721248876508
Popo Compatible No
