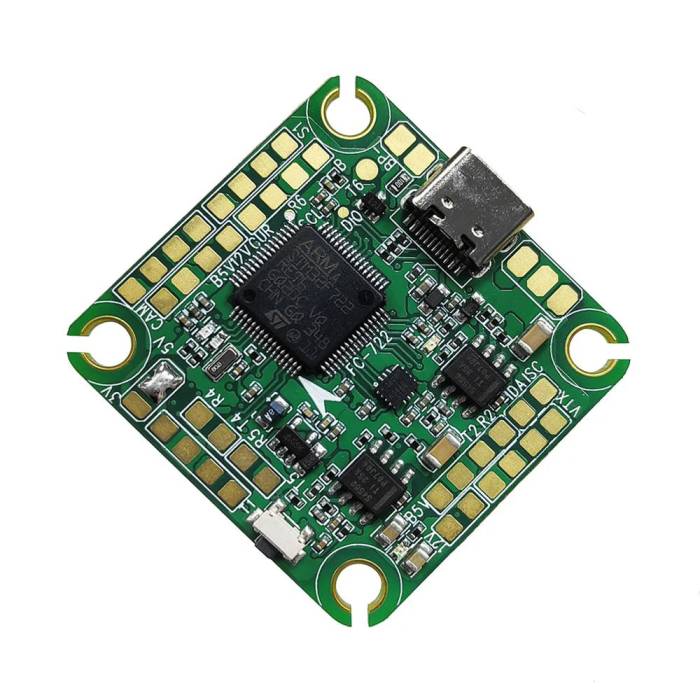

DYS F722 Flight Controller - ICM42688P - 30x30

The DYS F7 Flight Controller features an STM32F722 MCU, an ICM42688P gyroscope, a BMP280 barometer, and an AT7456E OSD. It includes a 16MB black box, 6 UART ports, and eight motor ESC signals. The BEC output offers 3.3V/1A, 5V/3A, and 12V/3A, while the unit itself measures 38mm x 38mm and weighs 10g. It is compatible with a 6S Lipo input and features a mounting hole size of 30.5mm x 30.5mm/M3. Additionally, it has an Air Unit port for added convenience.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

• Input Compatibility
• Motor ESC Signals
• 6 UART Ports
• BEC Output
• Lightweight
• Versatility
• Black Box

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Mounting Hole: 30.5mm x 30.5mm/M3
• BEC Output: 3.3V/1A; 5V/3A; 12V/3A
• Gyroscope: ICM42688P
• Barometer: BMP280
• ESC Signal: 8 Motors
• Size: 38mm x 38mm
• MCU: STM32F722
• Air Unit Port: Yes
• Black Box: 16MB
• VTX Switch: No
• OSD: AT7456E
• UART: 6 Ports
• Input: 6S Lipo
• Weight: 10g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x DYS F722 Flight Controller - ICM42688P - 30x30
