DYS 1806-13 2300kv Brushless Motor
DYS 1806 2300kv brushless motor for mini multirotors.

FREE SAME DAY SHIPPING

Available on most orders over $99
Share

About this product

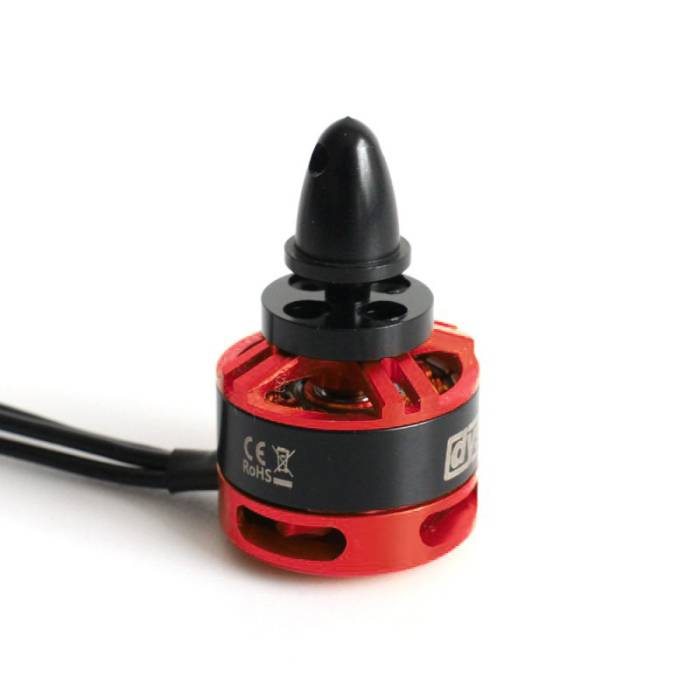

The DYS BE1806-13 multirotor motor is ideal for small to medium sized multirotors and comes complete with mounting bolts, a prop adapter and 150mm power leads with 2mm bullet connectors.

Features

  • All the bearings are NSK from Japan
  • Kawasaki, Japan 1200#0.2mm high efficiency silicon steel
  • 40UH high temperature powerful magnet
  • Professional balancing test, making concentricity, balance is greatly enhanced.

Specifications

  • Item name: 1806 2300KV Brushless Motor
  • Height: 0.85 inches (21.5mm)
  • Width: 0.90 inches (23mm)
  • Weight: 18 grams
  • RPM/V: 2300KV
  • Output shaft diameter: 2
  • Voltage: 2-3S
  • Battery: 2-3S lithium polymer
  • Max.current: 7.6A
  • Max.power: 84.4W
  • Mounting pattern: 2x 12mm and 2x 16mm
  • Motor mount hole size: M2

Includes

  • 1x Motor (Included wire and banana head)
  • 1x Paddle Clips
  • 1x Tablet
  • 1x Screw Package

More Information

SKU 3048
UPC (GTIN) 652118486490
Manufacturer DYS
