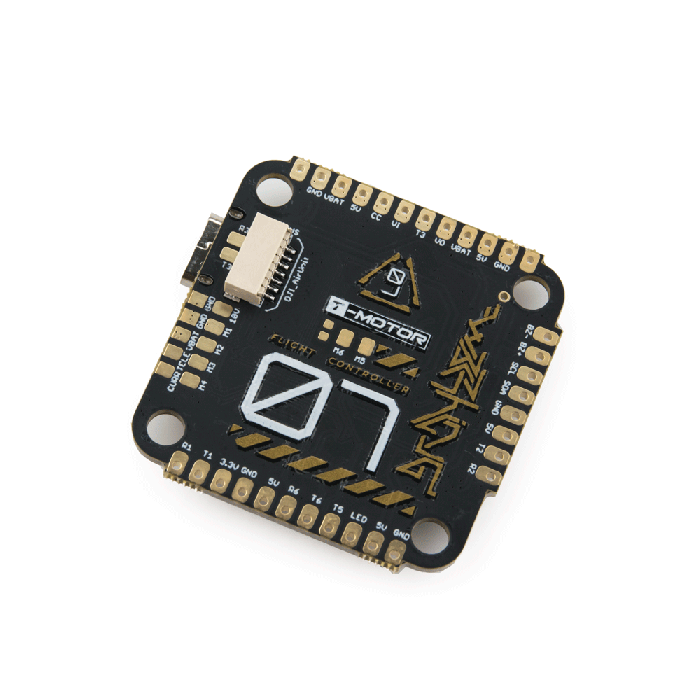

T-Motor Pacer F7 USB-C Flight Controller

T-Motor's Pacer F7 USB-C Flight Controller is designed to work seamlessly with the F45A 2.0, F55A Pro II，V45A，P50A, P60A 4-in-1 ESC. Come with an onboard 5V 3A BEC, 6 UARTS, build-in OSD, and built-in LC filter, among other cool features!

Features

• Enlarged solder pads on edge, easy connection
• Build-in OSD chip supports BF OSD function
• 6 x Hardware UARTs
• 3-6S lipo direct input
• Onboard 5V 3A BEC
• Support camera control function
• Build-in 128Mbit/16MByte flash for black-box function
• Built-in LC filter, filter power noise, and supply clear picture
• Direct plug with F45A 2.0, F55A Pro II，V45A，P50AP60A 4in1 ESC (T-Motor 4in1 ESC)
• 5x 10V Power pad(2x Top and 3x Bottom), to power Video devices(only available when T-Motor 4-in-1 ESC w/ 10V BEC is connected)

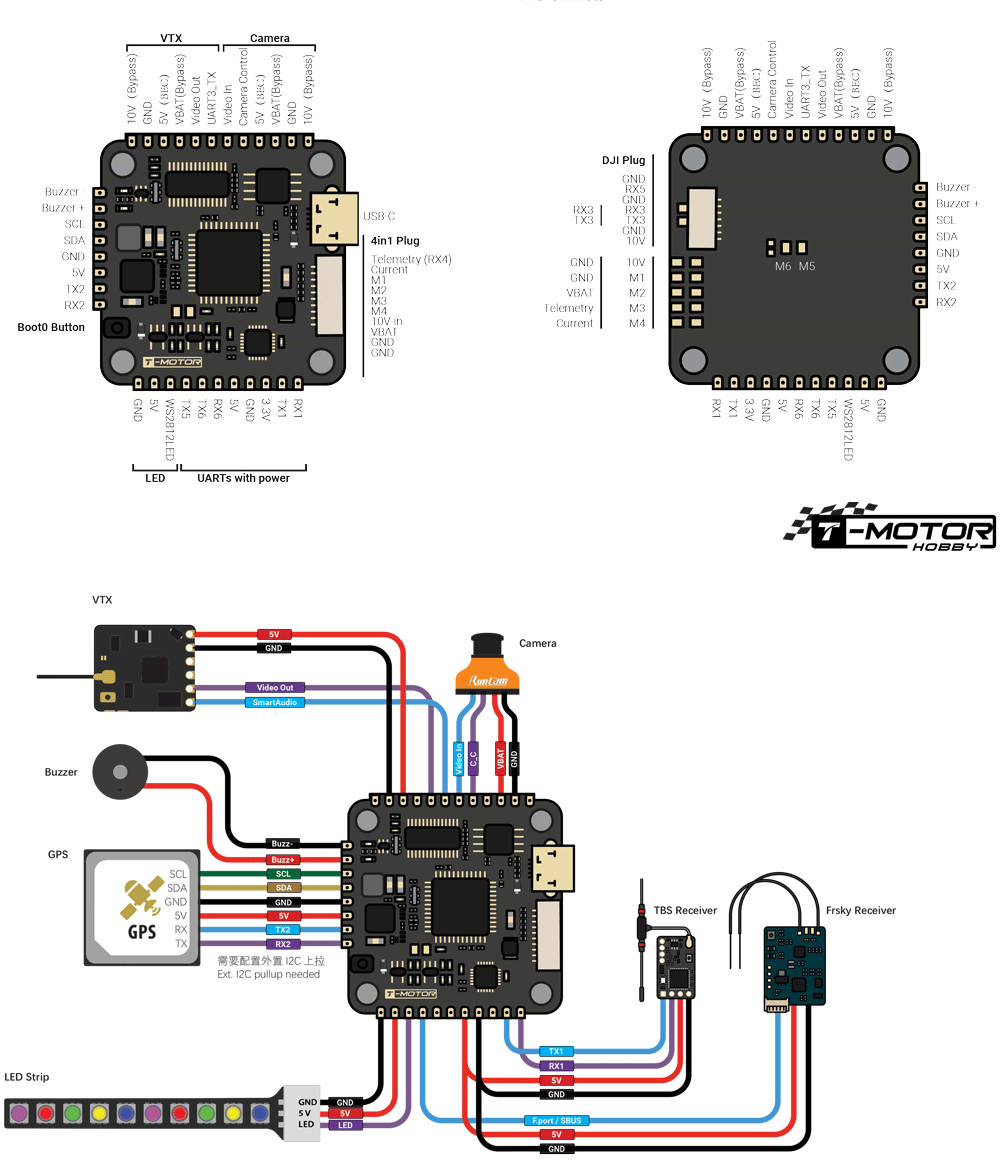

Diagram

Includes

• 1 x FC
• 1 x DJI Air Unit wire
• 1 x FC to 4in1 ESC wire
• 4 x Grommets
