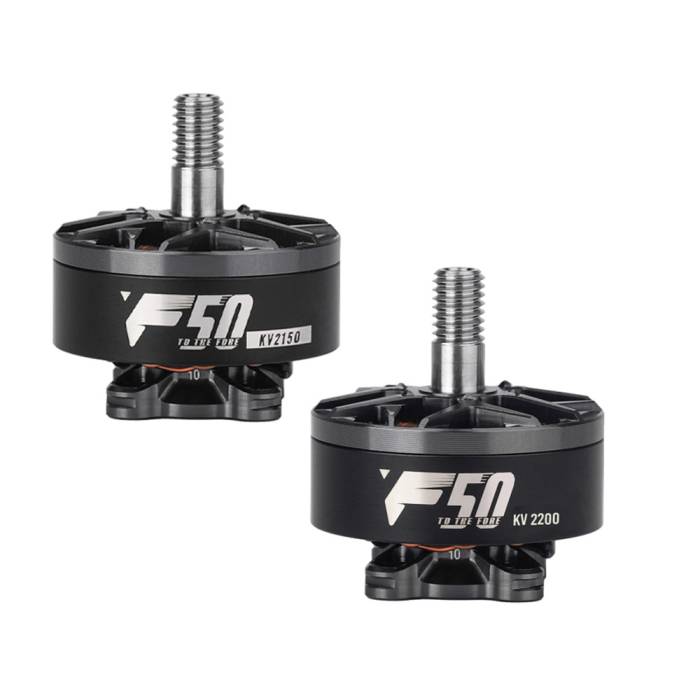

T-Motor F50 2207 5" Racing Motor - 2150KV/2200KV

The T-Motor F50 5-inch racing FPV drone motor features a titanium alloy shaft, a 2207 stator, and EZO bearings, delivering ultra-smooth flight performance. It has been highly praised by FPV racing champions. Positioned between the F40 and F60, the F50 offers a perfect balance of power and efficiency. Its optimized design makes it ideal for both racing and freestyle applications.

VIDEO: NEW RELEASE: T-MOTOR F50, FOR 5-INCH LIGHTWEIGHT FPV DRONE RACING

• Balanced Power and Efficiency
• Champion-Endorsed
• Titanium Alloy Shaft
• Optimized Design
• EZO Bearings
• 2207 Stator

• Standards Compliance: 300V Withstand Voltage Test
• Bearings: Imported 684ZZ/MR84ZZ Bearings
• Prop Adapter Shaft Thread: M5 × 10.75mm
• Waterproof and Dustproof Class: Yes
• Motor Dimensions: Ø27 × 29.5mm
• Magnet Type: Plated Arc Magnet
• Lead Wire: 20AWG × 150mm
• Material Finish: Black Nickel
• Packing Size: Ø68 × 35.0mm
• Coil Insulation Test: Passed
• Dynamic Balance: <3mg
• Configuration: 12N14P
• Shaft Diameter: 5mm
• Screw Diameter: M3
• Packing Weight: 55g
• Type: F50

2150KV

• Weight (Excluding Cable): 28.56g
• Internal Resistance: 50mΩ
• Rated Voltage (LiPo): 24V
• Idle Current (10V): ≤1.6A
• Peak Current: 54.8A
• Max Power: 1273W
• Max Thrust: 2136g
• KV Rating: 2150

2200KV

• Weight (Excluding Cable): 28.36g
• Internal Resistance: 47mΩ
• Rated Voltage (LiPo): 24V
• Idle Current (10V): ≤1.6A
• Peak Current: 56.63A
• Max Power: 1315W
• Max Thrust: 2134g
• KV Rating: 2200

• 1x T-Motor F50 2207 5" Racing Motor (Choose Your KV)
• 1x Hardware Kit
