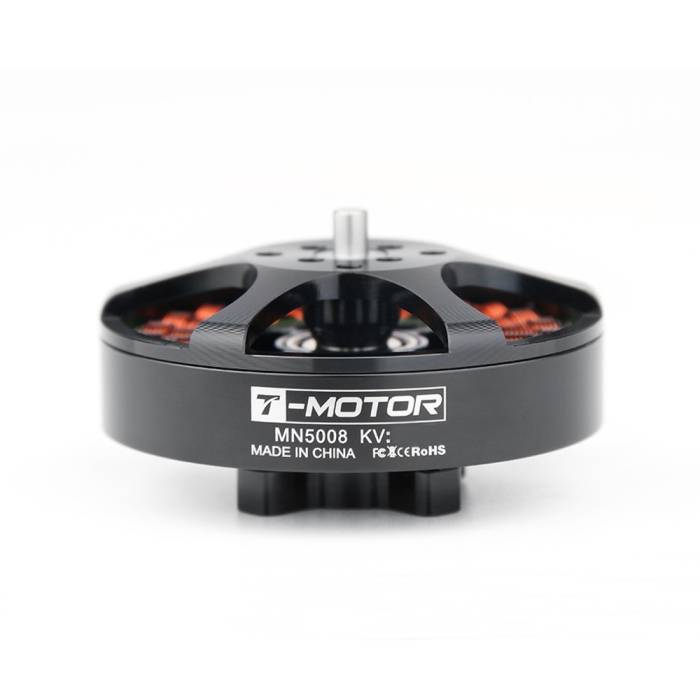

T-Motor Antigravity MN5008 Motor

T-Motor's MN5008 series is an ultralight, endurance-focused motor that was specially designed for various surveying applications. These motors are great for aerial photography!

Three KV's to choose from:170KV, 340KV, 400KV

Features

• Ultra-light, high efficiency
• Devote to a long flight
• Quadcopter of 4kg, 60mins flight time
• Run smoothly, low cogging torque

Specifications

170KV

• KV: 170
• Motor size: ø55.6*32mm
• Configuration: 24N28P
• Shaft Diameter: 6mm
• Lead Cable: 80mm
• Idle Current (22V): 0.4A
• Max. Power (180s): 720W
• Internal Resistance: 720mΩ
• Rated Voltage (Lipo): 6-12S
• Peak Current (180s): 15A
• ESC Recommendation: AIR 40A
• Prop Recommendation: P17-18"

340KV

• KV: 340
• Motor size: ø55.6*32mm
• Configuration: 24N28P
• Shaft Diameter: 6mm
• Lead Cable: 80mm
• Idle Current (22V): 0.9A
• Max. Power (180s): 760W
• Internal Resistance: 55mΩ
• Rated Voltage (Lipo): 6S
• Peak Current (180s): 35A
• ESC Recommendation: AIR 40A
• Prop Recommendation: P17-18"

400KV

• KV: 400
• Motor size: ø55.6*32mm
• Configuration: 24N28P
• Shaft Diameter: 6mm
• Lead Cable: 80mm
• Idle Current (22V): 1.1A
• Max. Power (180s): 800W
• Internal Resistance: 50mΩ
• Rated Voltage (Lipo): 6S
• Peak Current (180s): 35A
• ESC Recommendation: AIR 40A
• Prop Recommendation: P15-17"

Includes

• 1 x T-Motor Antigravity MN5008 Motor
