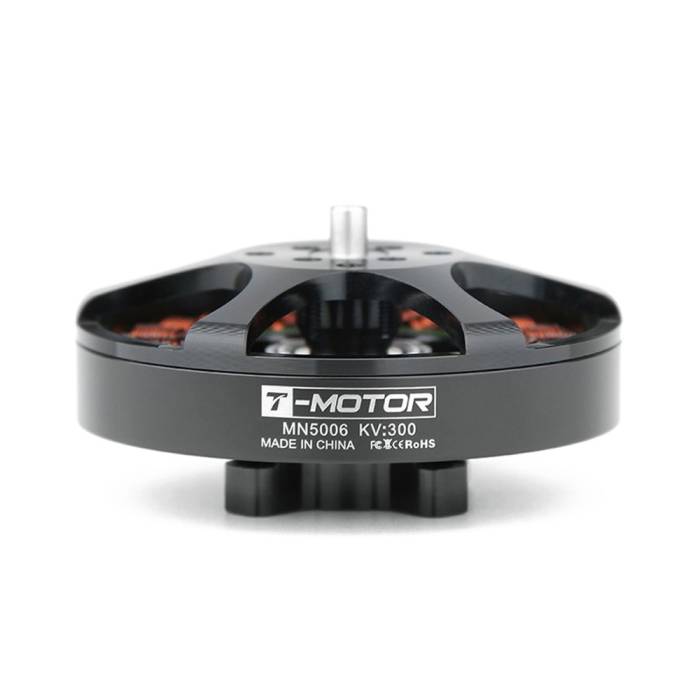

T-Motor Antigravity MN5006 Motor
T-Motor's MN5006 series is an ultralight, endurance-focused motor that was specially designed for various surveying applications. These motors are great for aerial photography!
Share

About this product

T-Motor's MN5006 series is an ultralight, endurance-focused motor that was specially designed for various surveying applications. These motors are great for aerial photography!

Two KV's to choose from 300KV, 450KV

Features

  • Ultra-light, high efficiency
  • Devote to a long flight
  • Quadcopter of 4kg, 60mins flight time
  • Run smoothly, low cogging torque

Specifications

300KV

  • KV: 340
  • Motor size: ø55.6*30mm
  • Configuration: 24N28P
  • Shaft Diameter: 6mm
  • Lead Cable: 60mm
  • Idle Current (22V): 0.6A
  • Max. Power (180s): 500W
  • Internal Resistance: 125mΩ
  • Rated Voltage (Lipo): 4-6S
  • Peak Current (180s): 20A
  • ESC Recommendation: AIR 40A
  • Prop Recommendation: P17-18"

450KV

  • KV: 400
  • Motor size: ø55.6*30mm
  • Configuration: 24N28P
  • Shaft Diameter: 6mm
  • Lead Cable: 60mm
  • Idle Current (22V): 0.9A
  • Max. Power (180s): 650W
  • Internal Resistance: 60mΩ
  • Rated Voltage (Lipo): 4-6S
  • Peak Current (180s): 26A
  • ESC Recommendation: AIR 40A
  • Prop Recommendation: P14-18"

Includes

  • 1 x T-Motor Antigravity MN5006 Motor

More Information

SKU 14008
Manufacturer Tiger Motors
NDAA Compliant No
Popo Compatible No
