TBS Mambo U.FL to RP-SMA Adapter (10cm)

This TBS U.FL to RP-SMA adapter is for those who want to modify their Mambo radio to use an external antenna, like the Peter The Penetrator - Tracer TX antenna.

VIDEO: A beginners guide to FPV drone and quad VTX video antenna connectors // UFL // SMA // RP-SMA // MMCX

Features

• Connects an external antenna to radios such as the TBS Mambo.
• U.FL to RP-SMA connection

HOW TO:

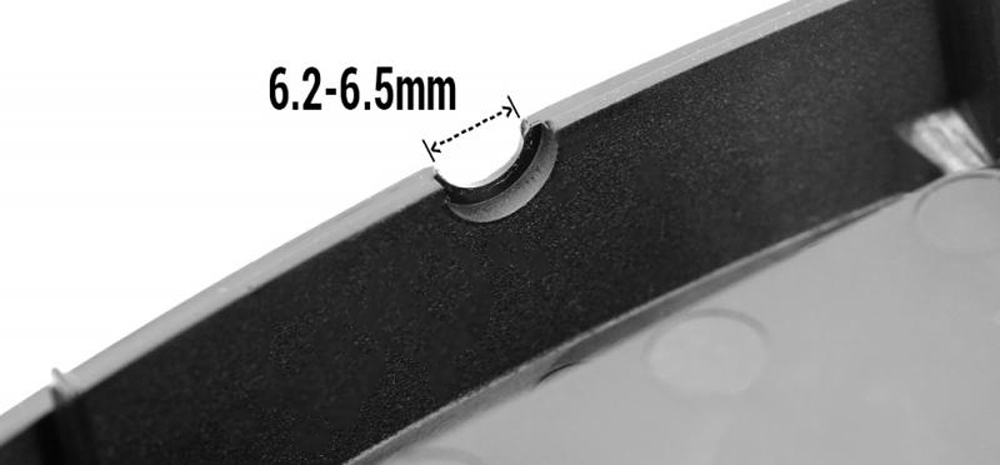

1. Open up the radio and you will find a circular groove located at the top of the radio.
2. Drill a hole there with a diameter of approximately 6.2 - 6.5mm. Do not make it flush with the groove or the adapter will have no place to secure.
3. Connect the U.FL side onto the PCB.
4. Install RP-SMA adapter with the lock washer and hex nut on the outside.

Specifications

• Connector: U.FL to RP-SMA
• Length: 10cm

Important Notes

• Please verify your connector to ensure proper connection and function!

Includes

• 1x TBS Mambo U.FL to RP-SMA Adapter (10cm)
