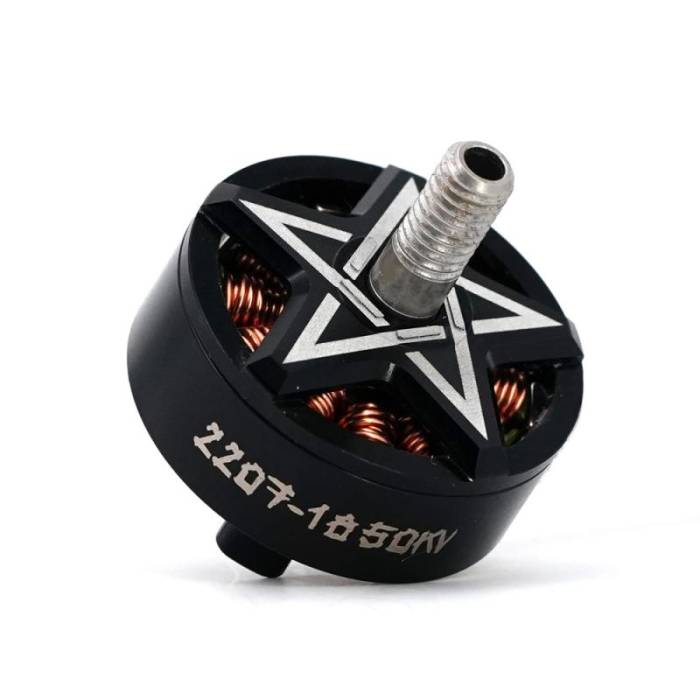

TBS Grinder 2207 1850KV 6S Motor
TBS Grinder 2207 1850KV 6S Motor
TBS Grinder 2207 1850KV 6S Motor
6S is the move with the new TBS Botgrinder motors - now in a 1850KV version!
About this product
6S is the move with the new TBS Botgrinder motors - now in a 1850KV version!
These are the same "build" as the Grinder II motor but now more 6S friendly. The color has also changed to black show others you are a super serious drone pilot.
Specifications
- Stator Size (Diameter): 22mm*7mm
- KV: 1850KV
- Magnets: N52SH Curved
- Windings: 10.5 turn DLRK
- Shaft Length (mm): 11.5mm
- Shaft Diameter (mm): 3mm
- Shaft material: Steel
- Bearing: NSK693
- Weight (With Wires) (g): 34.5g
- Cells (Lipo): 4S-6S
- Max Current (A): 45A
- Max Burst Current (A): 50A
- Internal Resistance (Rm): 50Ω
- Wire Spec (AWG): 20#
- Base Mounting Pattern: 16x16mm
- Base Mounting Thread: M3 Thread
- Motor Overall Dimensions: φ27.5mm*18.8mm
Includes
- 1 x Grinder 2207 1850KV Motor
More Information
SKU | 14222 |
---|---|
UPC (GTIN) | 751313218193 |
Manufacturer | Team BlackSheep |
NDAA Compliant | No |
Popo Compatible | No |
Item Returns | This item can be returned |
