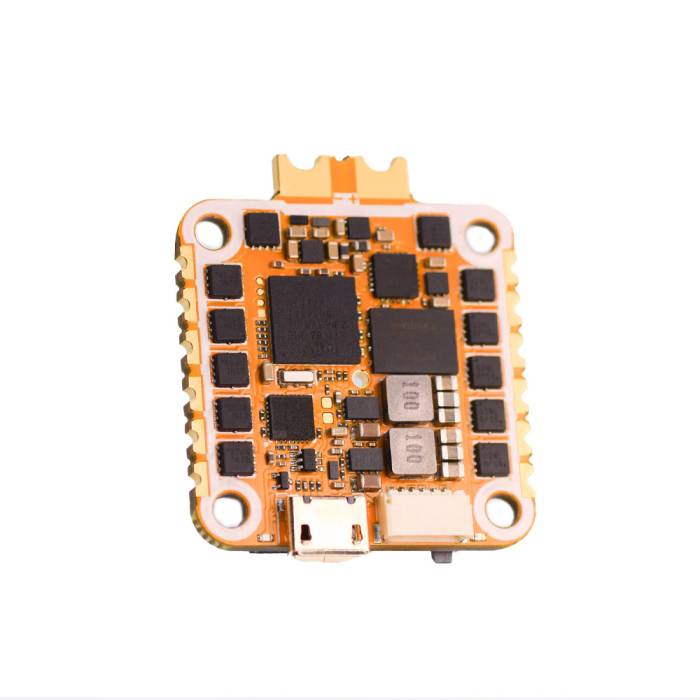

NewBeeDrone Infinity AIO - F7 FC + 45A 2-6S BLHeli_32 ESC - MPU6000 - 25x25
In Stock
About this product
The NewBeeDrone Infinity AIO is a powerful F7 flight controller and 45A BLHeli_32 ESC combo, designed for unmatched performance and reliability in FPV builds. It features the MPU6000 gyro for smooth control, 128MB blackbox for detailed data logging, and seamless DJI FPV integration with a dedicated power supply. Compact and lightweight, it supports multiple peripherals and is perfect for high-performance setups with 2-6S battery input.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Powerful F7 Flight Controller
- Compact and Lightweight
- Versatile Connectivity
- Ready for Accessories
- 45A BLHeli_32 ESC
- DJI FPV Integration
- 2-6S Battery Input
- 128MB Blackbox
- MPU6000 Gyro
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Dimensions: 37x32mm with 25.5x25.5 Mounting Holes
- Power Supply: 5V 3A for External LED or GPS Module
- Continuous Current: 45A and 55A Burst ESC
- Design for DJI FPV Air Unit: 12V 3A 30W
- Betaflight OSD Support: Analog build
- MCU: 4x STM32G071 BLHELI32 ESC
- DJI FPV Air Unit Connector: 6-Pin
- Weight: 10.2g without grommets

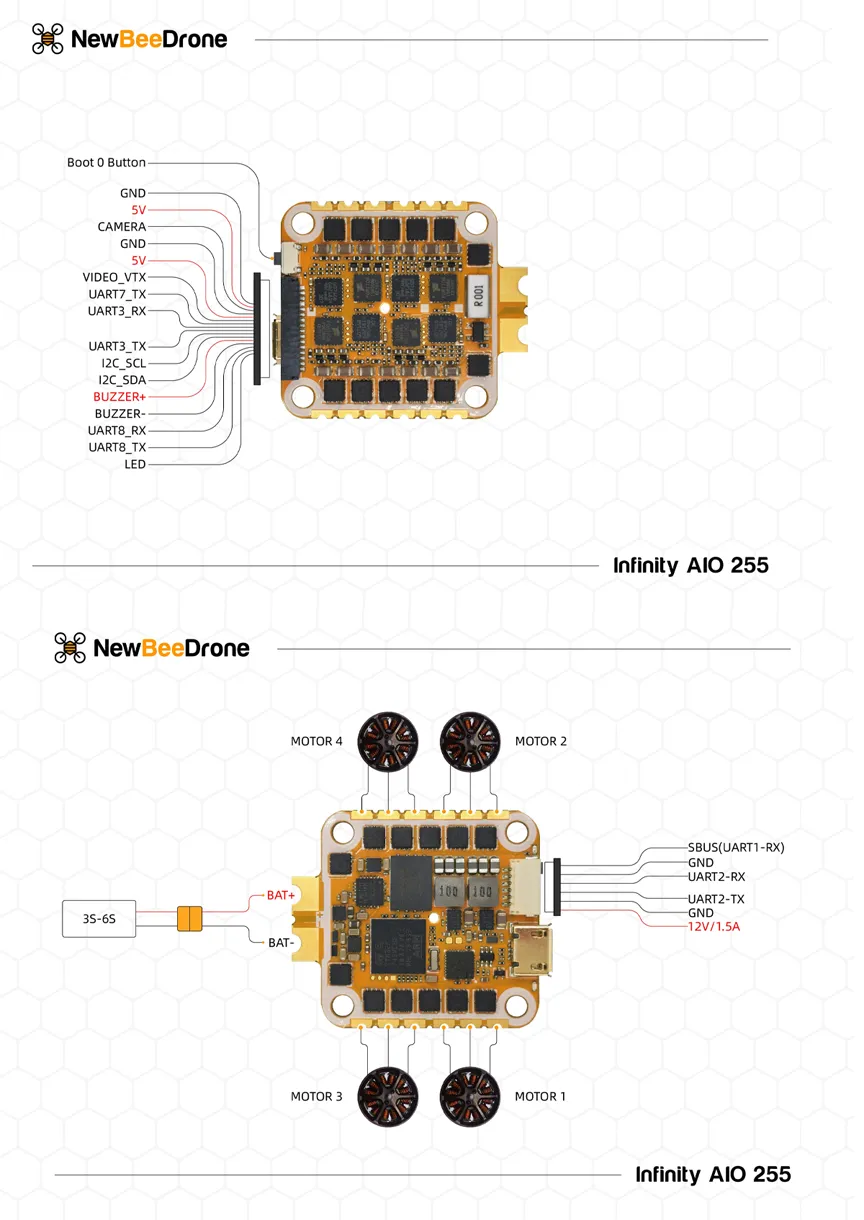

- I2C_SCL, I2C_SDA: Ready
- MCU: STM32F745VEH6
- Battery Input: 2-6S
- Blackbox: 128MB
- Gyro: MPU6000
- Buzzer: Ready
- LED: Ready
- Micro USB Connector:
- UART1: SBUS on DJI Connector (RX only)
- UART2: DJI Connector
- UART3: Free
- UART7: Free
- UART8: Free
- UART5: ESC
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x NewBeeDrone Infinity AIO - F7 FC + 45A 2-6S BLHeli_32 ESC - MPU6000 - 25x25
- 1x DJI O3 Cable 100mm (Silicone wire)
- 2x 16Pin Cable 150mm (Teflon Wire)
- 1x Hardware Set
- 1x XT30 Cable
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22465 |
|---|---|
| UPC (GTIN) | 724376364671 |
| Manufacturer | NewBeeDrone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 45 Amps |
| Flight Controller Processor | F7 |
| Voltage | 2-6 Cell (8.4v-25.2v) |
| ESC Firmware | BLHeli_32 |
| Number of ESC's | 4 ESC's in 1 |
