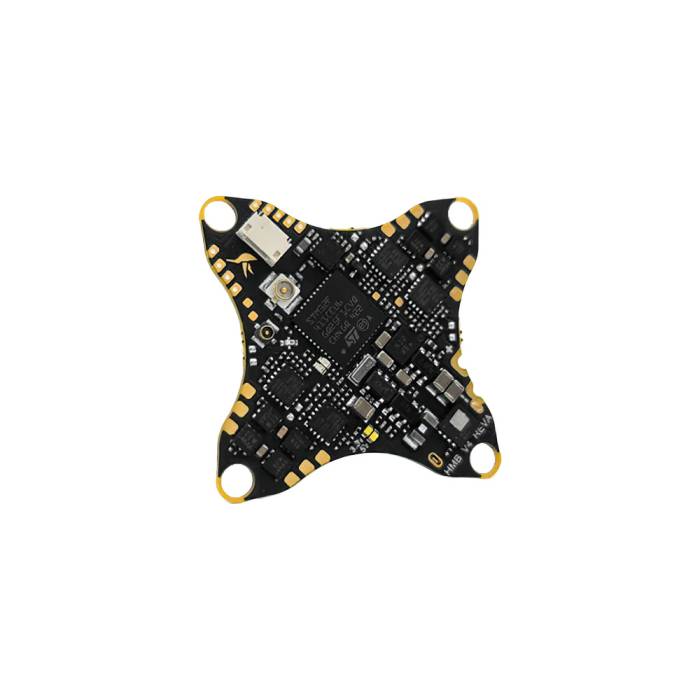

NewBeeDrone HummingBird V4 AIO - F4 FC + 12A 1S 4-in-1 BLHeliS ESC + ELRS RX + 400mW VTX - 25x25

The NewBeeDrone HummingBird V4 AIO is a compact, high-performance 25x25mm flight controller built for micro racing and freestyle. It features an F4 processor, 12A 1S 4-in-1 BLHeli_S ESC, onboard ExpressLRS receiver, and a powerful 400mW VTX. With plug-and-play ease and factory tuning, it delivers smooth flights, low-latency control, and a strong video signal for both indoor and outdoor flying.

• Factory-Tuned for Plug-And-Play Simplicity
• Integrated 12A 1S 4-in-1 BLHeli_S ESC
• Compact 25x25mm Mounting Pattern
• Built-In ExpressLRS 2.4GHz Receiver
• Powerful F4 Flight Controller
• All-In-One Design
• 400mW VTX


• VTX: 25mw for Racing/ 100mw and up to 400mw SmartMax temperature control with BeeTX 5.8Ghz Antenna
• ESC: 12A BLHeliS pre-flashed with Bluejay 0.19.2 Target: O-H-10 48kHz
• Flight Controller Weight: 4.57g(Include antennas and battery connector)
• OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
• Power Plug: Nectar Connector Gold Plated PH2.0 Solid Pin
• Flight Controller Size: Outer dimensions: 29x29x7.6mm
• Receiver: 2.4G Antenna with MHF3 connector
• Flight Controller Holes: 25.5x25.5mm
• ESC Connector: JST-1.0 3Pin
• Battery input: 1S Only
• MCU: STM32F411
• GYRO: BMI270
• Uart1: free
• Uart2: free

• 1x NewBeeDrone HummingBird V4 AIO - F4 FC + 12A 1S 4-in-1 BLHeliS ESC + ELRS RX + 400mW VTX - 25x25
• 1x Hardware Kit
