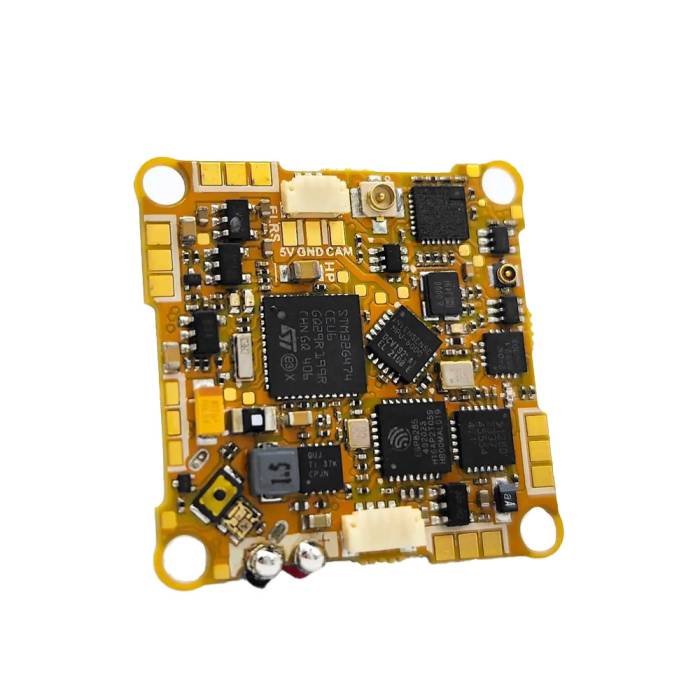

NewBeeDrone BeeBrain BLV5 AIO - G4 FC + 18A 1-2S 4-in-1 Bluejay ESC - MPU6000 - 25X25

The NewBeeDrone BeeBrain BLV5 AIO Flight Controller with ExpressLRS 2.4G delivers cutting-edge innovation to the BeeBrain series. Featuring an STM32G474 MCU and 18A ESC running Bluejay 0.19.2 at 48kHz, it ensures precision, power, and durability. With Smart-Max VTX Power Control, the BLV5 optimizes VTX output (25mW, 100mW, 400mW) based on temperature, ensuring stable video transmission and preventing overheating. Pair it with Flow 0804 14,000KV brushless motors for smooth performance on 1S and 2S batteries. The built-in ExpressLRS dual-antenna receiver ensures strong, reliable signal in any environment.

• Smart-Max VTX Power Control Technology
• Built-In ELRS 2.4GHz Receiver
• 25x25 Mounting Pattern
• TCXO Crystal Oscillator
• MPU6000 Gyro

• Receiver: Built-in TCXO Crystal Oscillator, ExpressLRS 2.4GHz Diversity Receiver (UART-based)
• ESC: Double N-MOS, 1 Channel, 18A, running Z-H-40 Bluejay 0.19.2, 48kHz
• Flight Control Size: 29x29x7.6mm / 25.5x25.5mm
• VTX: 25mW/100mW/Smart-Max (400mW)
• MCU: STM32G474, 216MHz
• Flight Control Weight: 5.8g
• Motor Plug: JST-1.0, 3-pin
• Gyro: MPU6000

• 1x NewBeeDrone BeeBrain BLV5 AIO - G4 FC + 18A 1-2S 4-in-1 Bluejay ESC - MPU6000 - 25X25
• 1x ELRS 2.4GHz Receiver T-Antenna
• 1x ELRS 2.4GHz Receiver Antenna
• 1x 5.8GHz VTX Antenna
• 4x Rubber Grommet
• 1x Hardware Kit
