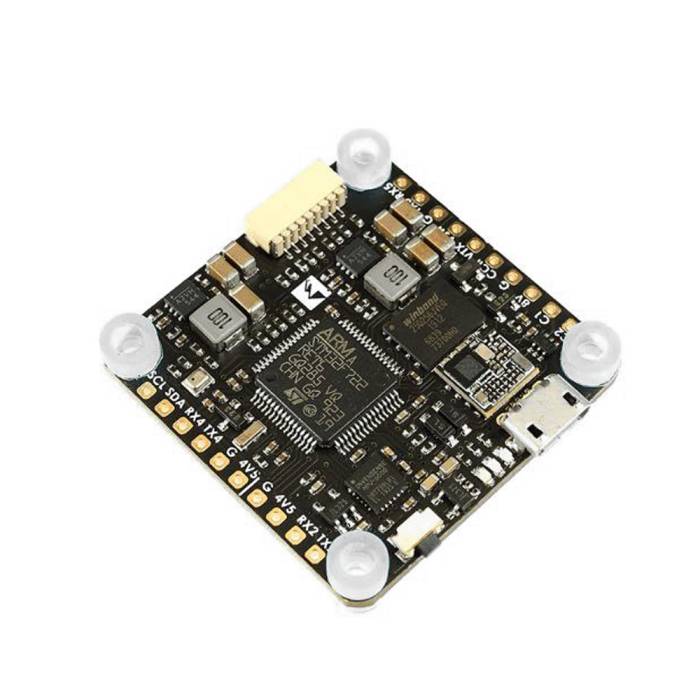

MATEKSYS F722-PX w/Pixel OSD Flight Controller

Matek's line of F7 flight controllers brings a host of new possibilities to your fixed wing or multirotor. Loaded with an array of features and tons of room for peripherals, this board lets you choose how you want to fly.

The F722-PX w/ Pixel FC is specially designed to connect directly to the F722-PX-W Power Distribution Board.

Specifications

• MCU: 216MHz STM32F722RET6
• IMU: MPU6000 (SPI)
• Baro: BMP280 (I2C)
• OSD: Pixel OSD/FrskyOSD (Uart6)
• Blackbox: 32M-byte Flash memory (SPI)
• 6x Uarts with built-in inversion
• 1x Softserial_Tx option
• 10x Dshot/PWM outputs
• 1x I2C
• 4x ADC (VBAT, Current, RSSI, AirSpeed)
• 1x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1/S2/S3/S4)
• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• Switchable Dual Camera Inputs
• Switchable 5V/8V for VTX
• PWM camera control: Yes
• TR/SA VTX control: Yes
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes
• Analog Airspeed sensor: Yes
• Digital Airspeed sensor: Yes

Power

• Input: 9~36V (3~8S LiPo)
• BEC: 5V 2A cont. (Max.3A)
• BEC: 8V 2A cont. (Max.3A)
• LDO 3.3V: Max.200mA
• Battery Voltage Sensor: 1:10 (Scale 110)
• No Current Sensor built-in

FC Firmware

• BetaFlight unified target: MATEKF722PX(MTKS)
• INAV target: MATEKF722PX

Physical

• Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
• Dimensions: 36 x 36 x 5 mm
• Weight: 6.5g

Includes

• 1 x FC F722-PX
• 6 x Silicon grommets M4 to M3
• 1 x SH1.0_8pin cable 5cm
• 2 x SH1.0_8pin connectors

Manual
