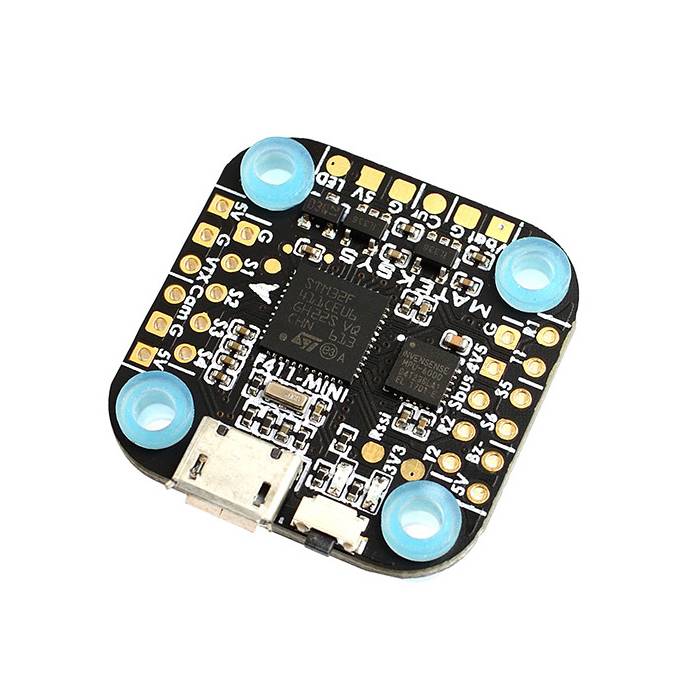

MATEKSYS F411-MINI Flight Controller w/ F4, MPU60000, BFOSD, BEC 5V
The Matek F411-MINI with MPU6000, BFOSD, 6x PWM / DShot outputs, Built-in BEC 5V 2A, and 20×20 mounting holes.
Share

About this product

This flight controller was designed to be paired with the Matek FCHUB-A.

Specifications

  • MCU: 100MHz STM32F411
  • IMU: MPU6000
  • OSD: BetaFlight OSD w/ AT7456E chip
  • VCP, UART1, UART2,
  • 6x PWM/Dshot outputs
  • 2x LEDs for FC STATUS (Blue, Red)
  • Built-in inverter for SBUS input (UART1-RX)
  • PPM/UART Shared: UART2-RX
  • SoftSerial supported on S5 & S6
  • Camera control supported on RSSI pad
  • Battery Voltage Sensor: 1:10
  • Current Sensor: No (FCHUB-A option)
  • BEC 5V: 2A
  • LDO 3.3V: Max.300mA
  • I2C1 SDA & SCL available
  • WS2812 Led Strip: Yes
  • Beeper: Yes
  • RSSI: No
  • Blackbox: No
  • 28x28mm PCB with 20mm mounting holes
  • 4.5g

      Includes

      • F411-Mini Flight Controller
      • 6x silicon grommets M4 to M3
      • 6x brass grommets M3 to M2

      Downloads

      Downloads and setup information can be found here



      More Information

      SKU 7894
      UPC (GTIN) 704817762051
      Manufacturer MatekSys
      Country of Manufacture China
      NDAA Compliant No
      Mounting Pattern N/A
      Flight Controller Processor F4
