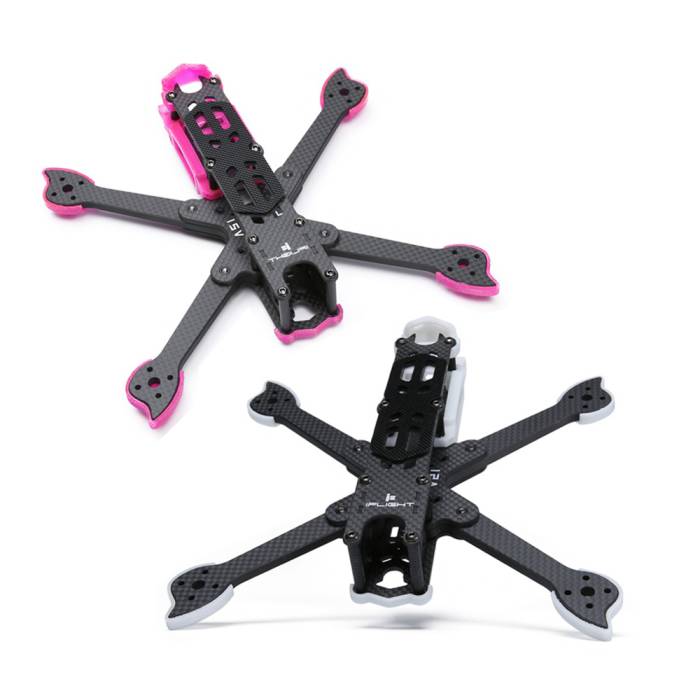

The Cidora SL5 V2.1 HD Frame Kit by iFlight features a squashed X layout for maximum control is made out of full 3K carbon fiber, and you can mount the DJI Digital HD FPV System!

Main Changelog V2.1

• Bottom carbon thickness increased from 2mm to 2.5mm
• Arm thickness increased from 5mm to 5.5mm
• The Wheelbase increased from 215mm to 217mm
• TPU parts are not compatible, color is different

Features

• Full 3K Carbon Fiber airframe with chamfered arms

Specifications

• Total Dimensions: 166*139mm (body dimension)
• Frame Wheelbase: 217mm
• Bottom to top distance: 28mm
• Arm thickness: 5.5mm
• Bottom plate thickness: 2.5mm
• Top plate thickness: 2mm
• Upper(middle) plate thickness: 3mm
• Camera plate thickness: 2.5mm (included TPU inserts)
• Weight: 156.1g (with TPU parts)

Recommend Parts (Not included)

• SucceX-D F7(SucceX 50A BLHeli32 4-in-1 ESC) Stack
• DJI FPV Air Unit -Bind and Fly
• XING 2207 1800KV (6S)
• XING 2207 2450KV (4S)
• Nazgul 5140 Propeller
• TPU 3D Printed Camera Mount for Gopro Hero 5/6/7/8/9 with ND8 Filter
• TPU 3D Printed Camera Mount for GoPro Session

Recommend batteries (Not Included)

• 4S 1300mAh to 2000mAh
• 6s 1050mAh to 1500mAh

Includes

• 1 x Cidora SL5 V2.1 HD frame kit
• 1 x Screw Bag
• 1 x TPU Camera mount adapters
• 4 x Armguard/Motor mount
• 1 x TPU DJI Air Unit Bracket Mount
• 1 x TPU DJI Air Unit Antenna Mount
• 1 x TPU bottom plate front protective mount
• 1 x TPU bottom plate rear protective mount
• 1 x Battery Anti-slip Mat
• 1 x 20*250mm battery strap (Color May Vary)
• 1 x 20*200mm battery strap (Color May Vary)
