AOS RC UL7 EVO Frame Kit
$123.49
Out of Stock
Only left for same day shipping. Order now!

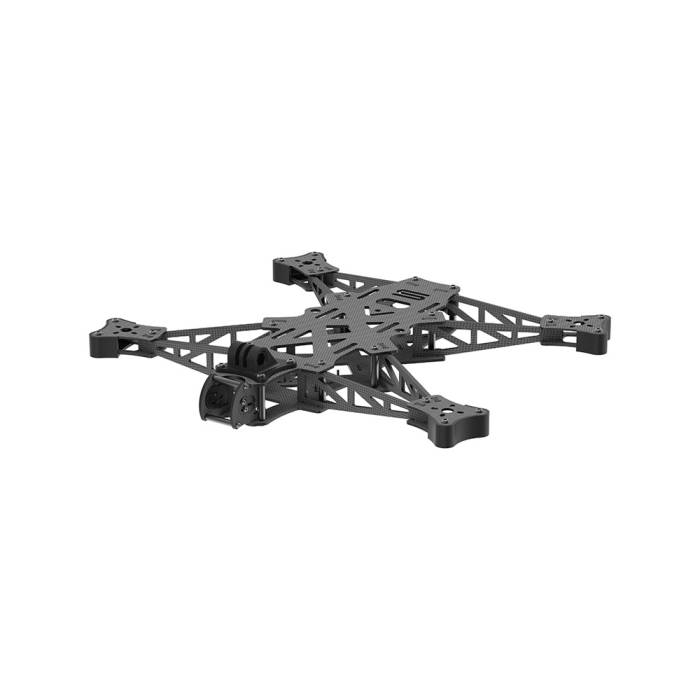

AOS RC UL7 EVO Frame Kit
The AOS UL7 EVO is an ultralight 7-inch FPV frame designed for maximum performance, speed, and efficiency. Its vertical truss arm structure ensures stiffness while keeping weight low for smooth footage and longer flights.
About this product
The AOS UL7 EVO is an ultralight 7-inch FPV frame designed for maximum performance, speed, and efficiency. Its vertical truss arm structure ensures stiffness while keeping weight low for smooth footage and longer flights. Featuring a soft-mounted FPV camera, ND filter support for DJI O3, and compatibility with 14-20mm FPV cameras (with a 3D-printed mount for 14mm), this frame is built for freestyle, long-range, and high-speed chasing. Push your limits with the AOS UL7 EVO.
Note: This frame kit requires assembly.
Features
- Compatible with 14-20mm FPV Cameras
- Ultralight & Stiff Vertical Truss Arms
- Supports ND Filters with DJI O3
- Revolutionary Frame Design
- Versatile Flight Capabilities
- Optimized for 7” Propellers
- Soft-Mounted FPV Camera
Specifications
- Flight Stack Mounting: 20×20 Φ2mm / 25.5×25.5 Φ2mm / 30×30 Φ3mm
- VTX Mounting: 20×20 Φ2mm / 25.5×25.5 Φ2mm / 30×30 Φ3mm
- Frame Dimensions: L190 × W262 × H29mm
- Motor Mounting: 16×16mm / 19×19mm
- Product Name: AOS UL7 EVO Frame Kit
- Max Flight Stack Height: 25mm
- Bottom Plate Thickness: 2mm
- Frame Wheelbase: 312mm
- Side Plate Thickness: 2mm
- Top Plate Thickness: 2mm
- Arm Thickness: 2.5mm
- Weight: 233g
IMPORTANT NOTES
- Due to manufacturing processes, the thickness of this products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
Includes
- 1x AOS RC UL7 EVO Frame Kit
- 1x Hardware Kit
More Information
| SKU | 22876 |
|---|---|
| UPC (GTIN) | 723326371325 |
| Manufacturer | AOS RC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Prop Length | 7" |
| Frame Style | Standard |
