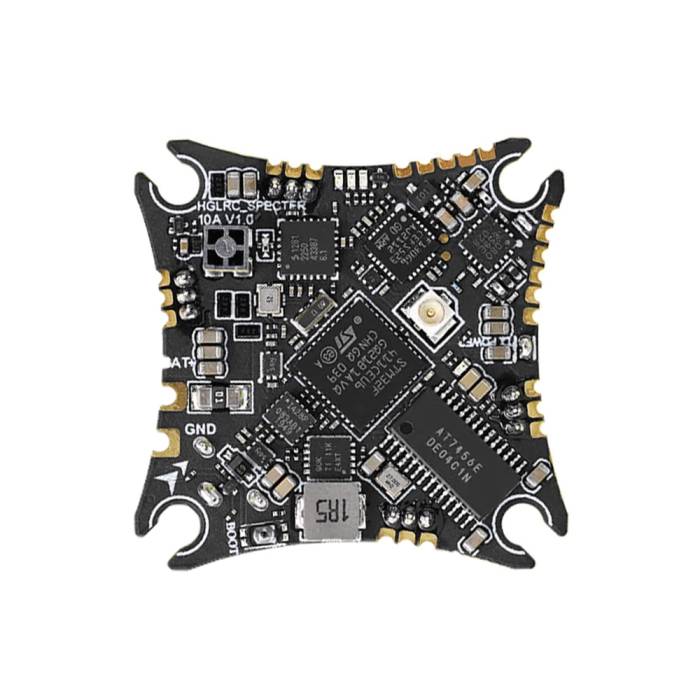

HGLRC Specter AIO - F411 ELRS FC + 10A 1-2S BLHeli_S ESC + 400mw VTX
$97.49
In Stock
Only left for same day shipping. Order now!
HGLRC Specter AIO - F411 ELRS FC + 10A 1-2S BLHeli_S ESC + 400mw VTX
The HLRC Specter AIO is a remarkable piece of technology, combining an ultra-light F411 10A 1-2S AIO brushless flight controller, a cutting-edge SPI ExpressLRS 2.4G receiver with patch ceramic antennas, and a versatile 400mW 5.8GHz adjustable power video transmission.
About this product
The HLRC Specter AIO is a remarkable piece of technology, combining an ultra-light F411 10A 1-2S AIO brushless flight controller, a cutting-edge SPI ExpressLRS 2.4G receiver with patch ceramic antennas, and a versatile 400mW 5.8GHz adjustable power video transmission. This compact device excels in sensitivity and responsiveness, making it a favorite among FPV enthusiasts. It's the perfect fit for a wide range of drones, from lightweight toothpick designs to whoop series, offering exceptional performance in any environment.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
Features
- Built-in SPI ELRS receiver/or external CRSF protocol receiver
- Built-in integrated TBS 400mW 5.8GHz analog video transmission
- Independent 3P socket, which can be directly connected to the motor
- By default, the Bluejay firmware is flashed to improve flight efficiency, which is the best choice for the drone
- Compatible with all 65mm-85mm hoop/toothpick frames
- Maximum support for an input voltage of 1-2s
Specifications
- Product name: SPECTER 10A 1-2S AIO
- MCU: STM32F411
- MPU: IXM42688
- BEC: 5V1.5A
- OSD: support
- LED: support
- Buzzer: support
- UARTS: UARTS1 image transmission OSD Adjustment parameters/UARTS2 CRSF protocol receiver/ VTX HD
- Built-in receiver: SPI ExpressLRS 2.4G
- Built-in receiver frequency: 2.4GHZ
- Built-in image transmission: 25-REC-100-400mW (adjustable)
- Built-in image transmission frequency: 48CH-5.8ghz
- Continuous current: 10A
- Peak current: 13A (10s)
- ESC protocol: Dshot600, Oneshot, Multishot
- Flight control firmware: HGLRCF411SX1280 V2
- ESC firmware: Z-H-30 (Bluejay)
- Input voltage: 1-2S 3.7V-7.4V (Lipo)
- Size: 32x32mm
- Mounting hole: 25.5X25.5mm.M2
- Weight: 4.9g
Includes
- 1x HGLRC Specter AIO - F411 ELRS FC + 10A 1-2S BLHeli_S ESC + 400mw VTX
- 1x XT30U-M 22AWG 70mm male power cord
- 1x PH2.0-2P 22AWG 35mm male power cord
- 1x MX1.25-3P 30AWG 75mm camera cable
- 4x M2*6.6 Shock-absorbing column
More Information
| SKU | 21276 |
|---|---|
| UPC (GTIN) | 724376356256 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 10 Amps |
| Flight Controller Processor | F4 |
| Voltage | 1-2 Cell (3.7v-7.4v) |
| ESC Firmware | BLHeli_S |
| Number of ESC's | 4 ESC's in 1 |
