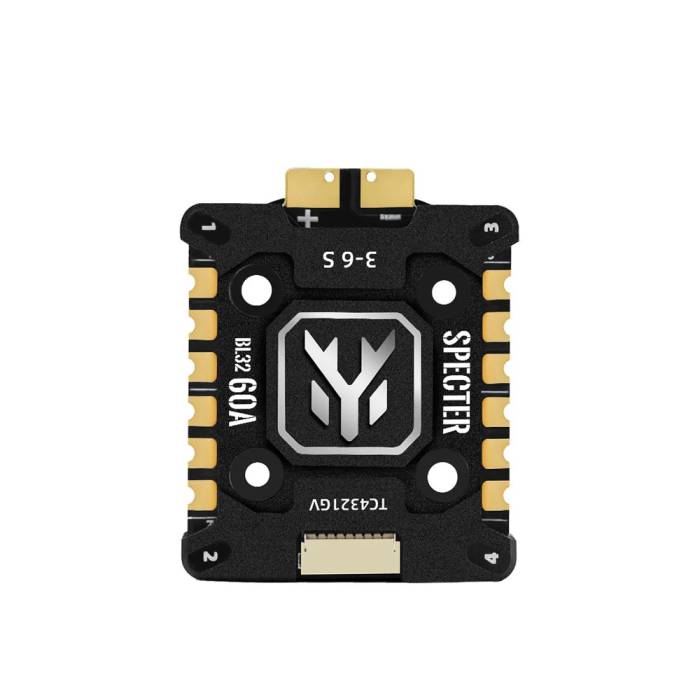

HGLRC Specter 60A BLHeli_32 3-6S 4-in-1 ESC

The HGLRC Specter 60A BL32 3-6S 4-in-1 ESC is a robust and high-performance electronic speed controller designed for demanding drone applications. It features advanced hardware and firmware for superior control and efficiency.

• Equipped with a high-performance STM32G071 BL32 processor for fast computing, smoother control, and quicker response times.
• Utilizes BL32 firmware with PWM frequency support up to 128K, ensuring precise motor control.
• Features immersed gold pads and a 6-layer board design for enhanced durability and high-temperature resistance.
• Integrated CNC heat sink for superior heat dissipation, stable operation, and improved usage efficiency.
• Built-in ammeter and BL32 support, providing data return capabilities such as motor speed, current, and temperature monitoring.
• Supports a wide range of digital protocols including DShot600/300/150 and is compatible with Oneshot125/42/MultiShot protocol.
• Nano-scale coating on both sides of the board offers waterproof, moisture-proof, and anti-corrosion protection.
• Supports an input voltage range of 3-6S Lipo, with a constant current of 60A and a peak current of 65A for 10 seconds.
• Compact dimensions of 44mm x 36mm x 7mm with an installation hole pattern of 20x20mm, M3.
• Lightweight at 19.5g, adding minimal weight to your drone build.

• Input Voltage:3-6S Lipo
• Constant Current:60A
• Peak Current:65A（10s）
• CPU:STM32G071(128K)
• ESC firmware:BL32 (SPECTER60_G_128)
• Size(L*W*H):44mmx36mmx7mm
• Installing Hole:20x20mm, M3
• Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot
• Weight:19.5g

• 1x HGLRC SPECTER 60A 4-in-1 ESC
• 1x 30AWG 25mm double-ended SH1.0-8P cable
• 1x 12AWG 100 power cord (black/red)
• 1x XT60H-M black male connector
• 1x 50v 470UF solid capacitor
