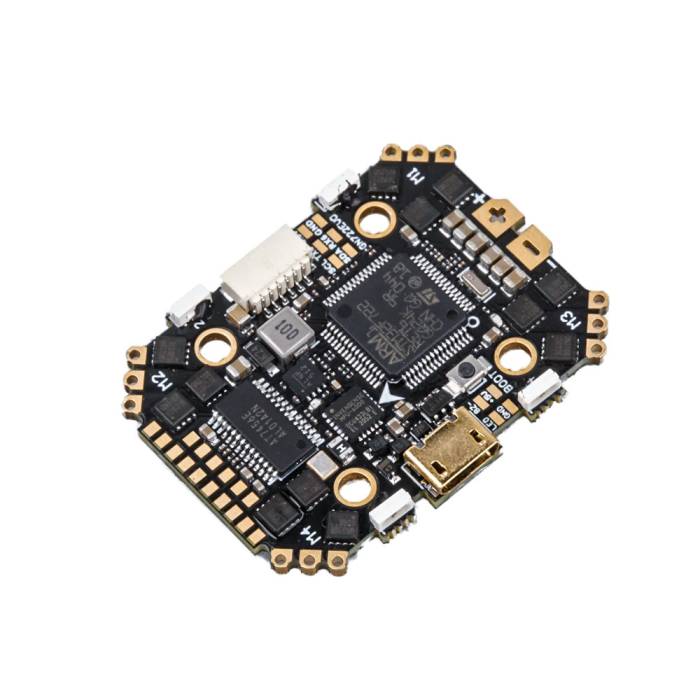

Flywoo GOKU GN722 HD EVO 40A BL_S AIO Flight Controller (20x20)

The Flywoo GN722 uses the powerful F722 chip accompanied by BLHELI_S ESC firmware. It is integrated with a 5V/9V dual BEC, barometer, black box, WS2812LED, supports 7 complete hardware serial ports, I2C, and other functions available.

Specifications

• MCU: STM32F722 32bit processor,216MHz, 512Kbytes Flash
• IMU: MPU6000 (SPI)
• Barometer: BMP280
• Onboard LED: WS2812*4
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onboard 16Mbytes for Blackbox logging
• 9V Power Out: 1.5A max
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 41x32mm
• Mounting Holes: Standard 20mm square to center of holes
• Weight: 8.5g


• Built-in 40A BL_S 4in1 ESC
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,Dshot600
• Input Voltage: 2-6S Lipo
• Continuous Current: 40A
• Firmware: BLHELI_8

Resources

• Betaflight Firmware target: FLYWOOF7DUAL
• INAV Firmware target: FLYWOOF7DUAL

Includes

• 1x GN722 40A AIO
• 1x XT60 Pigtail
• 1x Mounting Gummies
• 1x FC Cable
