Flywoo GOKU F411 V2.1 16x16 Flight Controller
Flywoo GOKU F411 V2.1 16x16 Flight Controller
$44.99
Flywoo GOKU F411 V2.1 16x16 Flight Controller
The Flywoo GOKU F411 Flight Controller (MPU6000) features 2 hardware UARTS, MPU6000 (SPI) IMU, STM32F411 MCU, and supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
About this product
The Flywoo GOKU F411 Flight Controller (MPU6000) features 2 hardware UARTS, MPU6000 (SPI) IMU, STM32F411 MCU, and supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
Specifications
- MCU: STM32F411
- IMU: MPU6000 (SPI)
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 2 hardware UARTS (UART1,2)
- 2 Software serial port
- 1 I2C port for compass/baro
- Onboard LED:WS2812*8(FC*4/ESC*4)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onboard 8Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 23.5x23.5mm
- Mounting Holes: Standard 16mm square to the center of holes
- Weight: 6.5g

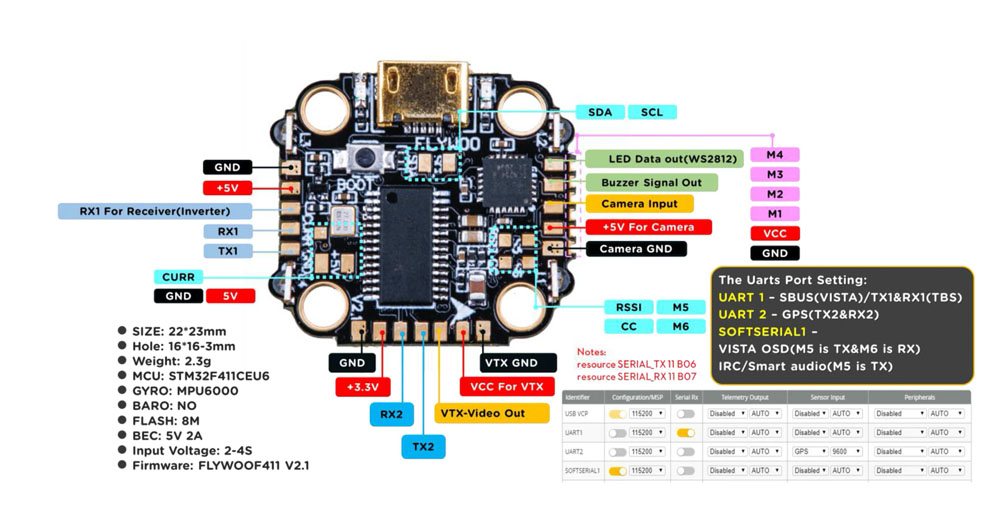

Diagram
Includes
- 1 x Flywoo GOKU F411 16x16 Flight Controller V2.1
More Information
SKU | 15002 |
---|---|
UPC (GTIN) | 789862856894 |
Manufacturer | Flywoo |
Mounting Pattern | 16x16mm |
NDAA Compliant | No |
Item Returns | This item can be returned |
