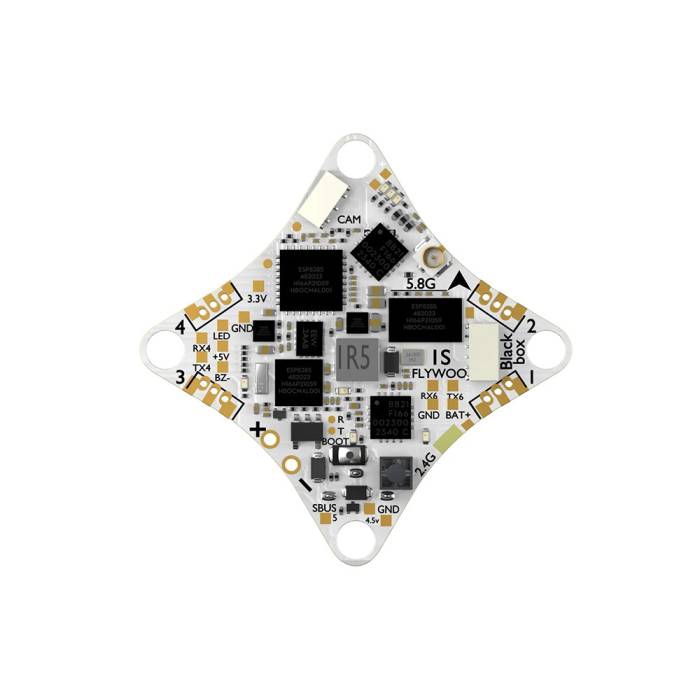

Flywoo GOKU ERVT 5-in-1 AIO - F405 FC + 1S 5A ESC + 400mw VTX + ELRS RX + OSD

Flywoo GOKU ERVT 5-in-1 AIO - F405 FC + 1S 5A ESC + 400mw VTX + ELRS RX + OSD – A revolutionary all-in-one solution. Powered by an F405BGA MCU , it delivers 68% higher processing power than traditional F411 chips, enabling ultra-low latency for competitive racing and acrobatic maneuvers.

• Integrated Design with plug-and-play interfaces for solder-free installation of motors, cameras, and blackbox
• Unmatched Processing, F405BGA chipset with 68% faster clock speed
• Video Transmission Switch
• Pagoda-style integrated antenna delivering ≥1.5km range
• 1S-optimized circuitry for sub-50ms video latency
• Fully compatible with Betaflight, INAV, and other mainstream firmware

GOKU F405 ERVT

• MCU: STM32F405BGA
• IMU: ICM42688P
• Barometer: No
• Black Box: No (Up to 512M external)
• OSD Support: AT7456E (LGA16)
• UART: UART1 (VTX IRC), UART2 (Blackbox), UART3 (ELRS RX), UART4, UART5 (SBUS), UART6
• Supported Protocols: CRSF, SBUS, iBus, Spektrum
• BEC: 5V 2.0A max
• RX: Flywoo EL24E 2400 RX 3.0.0
• FC Firmware: FLYWOOF405S_AIO
• Dimensions: 30.5 x 30.5mm
• Mounting Holes: Standard 25.5/25.5mm square to center of holes
• Weight: 4g

4in1 ESC

• Power input: 1S Only
• Current: 5A continuous, 8A peak
• ESC firmware: O_H_5_48KHz_V0.19.hex Bluejay firmware
• Digital signal protocol: DShot300, DShot600
• Motor Connector: JST1.25
• Battery connector: A30

Analog VTX

• Built-in VTX : 25/50/100/200/400/0mw
• VTX Protocol : IRC Tramp
• Frequency:5.8GHz 40 channels
• Raceband: 5658-5917MHz
• Operating temperature:-15°~+80°

• 1x Flywoo GOKU ERVT 5-in-1 AIO - F405 FC + 1S 5A ESC + 400mw VTX + ELRS RX + OSD
• 1x A30 power cable
• 1x JST-0.8 3pin 50mm camera cable
• 1x Flywoo Black box connector cable
• 4x 1.25mm 3-Pin Vertical Straight Socket
• 4x M2x6.6 Shock-Absorbing Ball
