EMAX PM1806 2300kv Plastic Brushless Motor (CW)

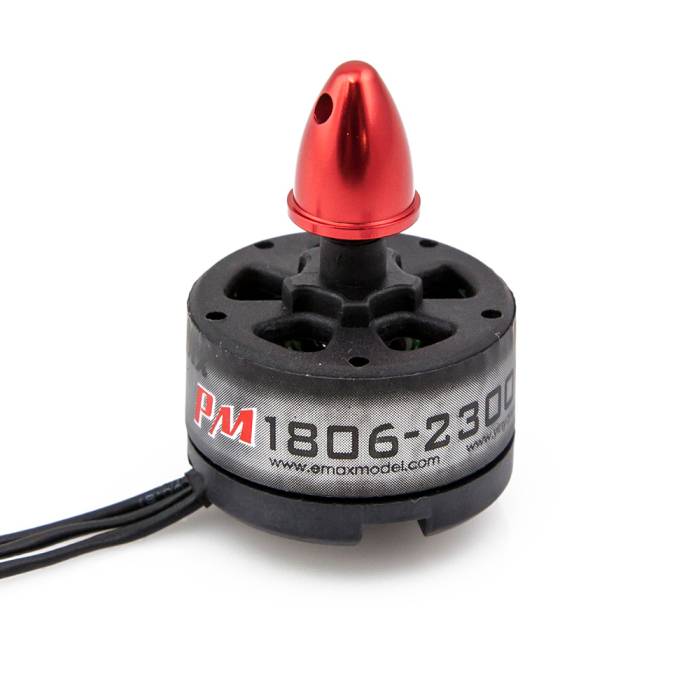

An EMAX PM1806 2300kv Plastic Brushless Motor with a clockwise tightening adapter.
Share

About this product

The EMAX PM 1806 2300kv motor is a new unique motor utilizing a durable and lightweight plastic for the motor bell and base. The composite plastic helps keep the cost down of the motor too making it a great budget or starter motor.

Specifications

  • Motor Type: PM1306
  • Framework: 9N12P
  • Weight: 19g
  • Thead Direction: red cap (CW) black cap (CCW)
  • KV: 2300 RPM/V
  • No-load Current (10V): 0.7A
  • Stator Size: 18.2 x 6 mm
  • Shaft: 3 mm
  • Diameter: 24.9 mm
  • Length: 28.7 mm
  • No.of cells: 2S LiPo Propeller: ≤6*4 propeller
  • No.of cells: 3S LiPo Propeller: ≤5*3 (3 Blade propeller)
  • Motor mount or multirotor frame arm of over 1mm :usage M2*4mm mounting screws
  • Motor mount or multirotor frame arm of over 3mm: usage M2*6mm mounting screws
  • Motor mount or multirotor frame arm of over 5mm :usage M2*8mm mounting screws
  • Threaded column torsion strength: ≦ 5kg f.cm

Includes

  • 1X CW PM1806 2300kv Plastic Brushless Motor

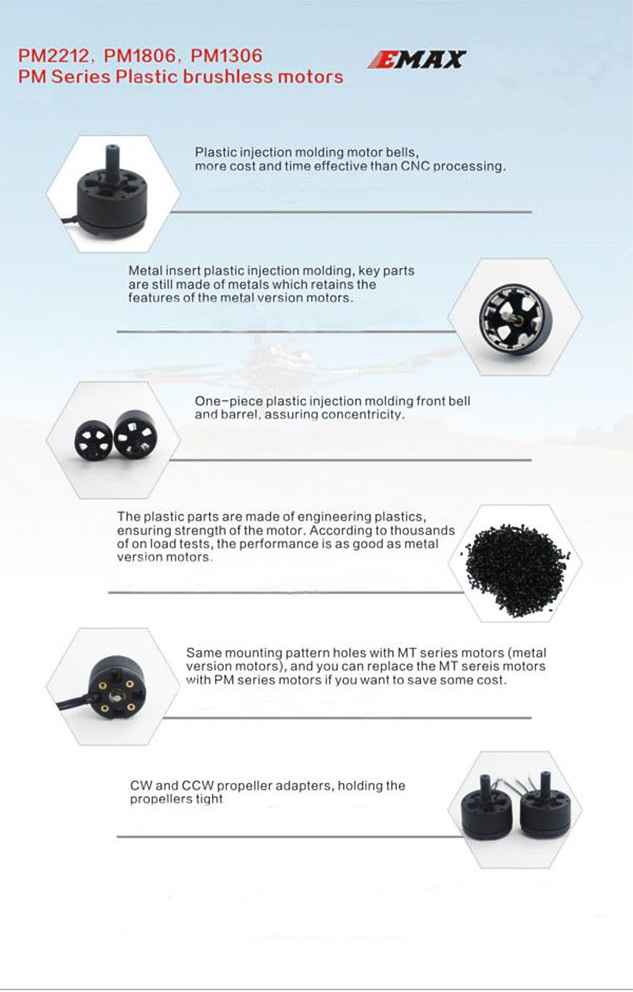

EMAX PM Series of plastic brushless motor
