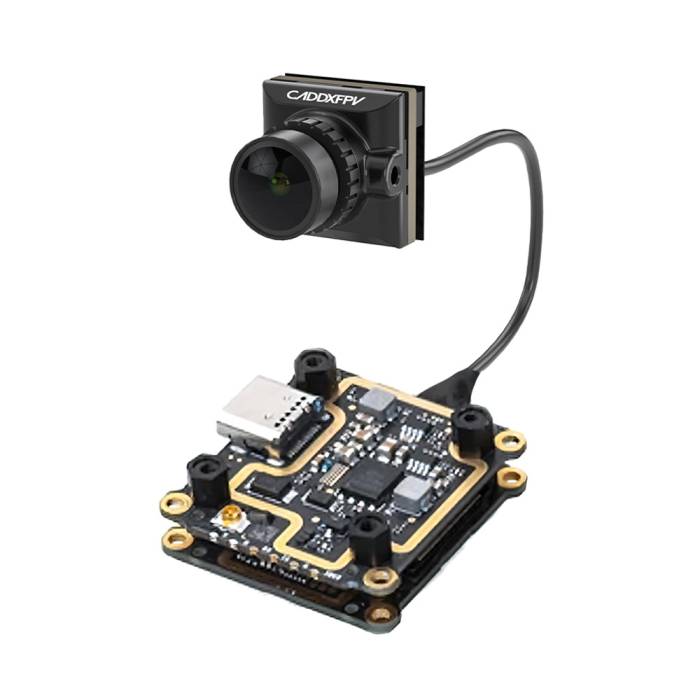

Caddx Naked Vista Unit w/ Polar Nano Camera
Caddx Naked Vista Unit w/ Polar Nano Camera
Out of Stock
About this product
Save 10g of weight in your builds by using a Naked Vista kit!
Some recent cinewhoops have come installed naked vistas to save weight. Especially useful for small lightweight builds. There are risks involved, as the heatsink is included by default for a reason! You must remember to fly right as you power on, or risk overheating of the Vista unit!
Note: Removal of the heat sink eliminates weight, but may cause overheating of the unit. Please be cautious when flying and once your battery is connected, fly immediately. The airflow will keep the unit cool.
GetFPV, Caddx, and Flywoo will NOT cover any damages or handle refunds for Naked Vista products due to the nature of the product. Use at your own risk!
Features
- Naked Caddx Vista heatsink casing removed, eliminating 10g of weight
- Starlight camera is great for low-light flights
- Low-latency HD image transmission
- 1/1.8 Inch Sensor
- 14x14mm Nano FPV Camera
- Min. illumination: 0.00003Lux
- Work with DJI goggles
Specifications
- Max. Transmission Distance FCC/SRRC: 4km;CE: 0.7km
- Operating Temperature Range: 32° to 104°F (0° to 40°C)
- Transmitter Power: (EIRP) FCC/SRRC/MIC: <30dBm
- Power Output: 29MW/200mMW/500mW/700mWwW
- Weight of naked Vista Kit (camera included): 12g
- Weight with camera and Heatsink casing: 22g
- Min.latency (end-to-end): 720p 60fps: <32ms
- Camera Sensor: 1/1.8” inch starlight CMOS
- Supported Flight Control System: F3.F4.F7
- Operating Frequency: 5./25-5.850GHZz
- I/O Interface: USB-C,IPEX,3-in-1 port
- Model: Caddx Polar Nano Vista kit
- Camera Size: 14x14x15.8mm
- Min. Illumination: 0.00003Lux
- FOV: 162°(D);138°(H);75°(V)
- Dimensions: 30x29x13mm
- Shutter: Rolling shutter
- Input Power 7 4-26.4V
- Coaxial Cable: 80mm
- Aspect Ratio: 16:9
- ISO: 100-25600
- CE: <14dBm
- Lens: F/1.8
Note: Removal of the heat sink eliminates weight, but may cause overheating of the unit. Please be cautious when flying and once your battery is connected, fly immediately. The airflow will keep the unit cool.
Includes
- 1x Naked Caddx Polar Nano Vista Kit 8cm
- 1x Heatsink
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 17358 |
|---|---|
| UPC (GTIN) | 764613338171 |
| Manufacturer | Flywoo |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Frequencies | 5.8GHz |
| Item Returns | This item can be returned |
