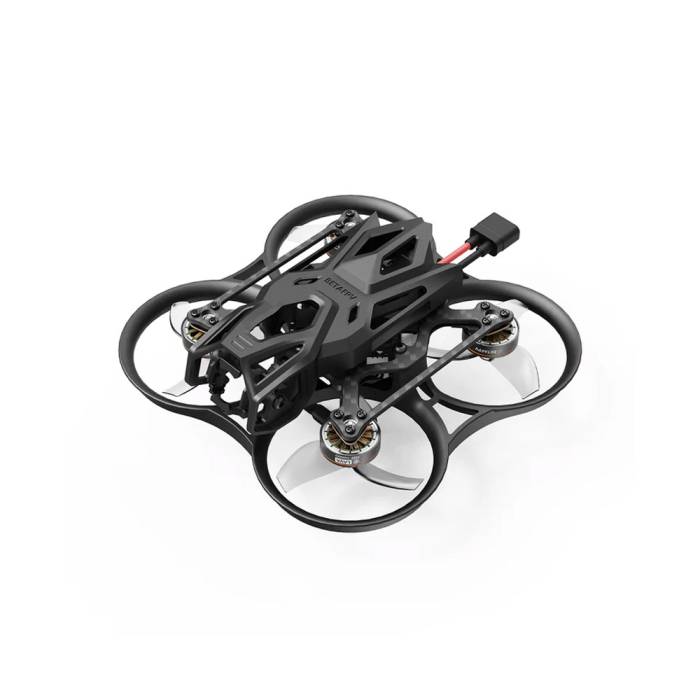

BETAFPV Pavo Femto 75mm Cinewhoop - No FPV System

The Pavo Femto is a 2S brushless drone designed for the DJI O4 Air Unit, offering 4K/60fps video in a compact form. Powered by LAVA 1102 motors with a 6.75:1 thrust-to-weight ratio, it delivers power and stability. Featuring optimized PID tuning, a shock-absorbing system for stable footage, and an F4 20A FC for HD VTX, it ensures smooth flight performance. With customizable settings and durable components, the Pavo Femto excels in freestyle flying and aerial videography.

Choose a Receiver:

• TBS Crossfire
• DJI PNP

Note: This cinewhoop is VTX Ready only - the FPV system is NOT included, but it does support DJI O4 Air Unit.

• Optimized for DJI 04 Air Unit
• Advanced Flight Controller
• Fine-Tuned Performance
• Small and Lightweight
• Best 2S Pocket Drone
• Pavo Femto Frame
• Impressive Power

ENGINEERED FOR DJI O4

The Pavo Femto is a 2S high-definition brushless drone engineered specifically for the DJI O4 Air Unit. Powered by the newly developed LAVA Series 1102 | 14000KV motors, its thrust-to-weight ratio exceeds 6.75:1 with the optimized whoop duct. Weighing just 54.77g, it combines a lightweight design with high performance, while the 8g DJI O4 Air Unit enables stunning 4K/60fps video recording. The Pavo Femto stands out as the ultimate 2S 4K pocket drone for smooth and precise flights.

FINE TUNE YOUR FLIGHT

The Pavo Femto is expertly calibrated for both aerial photography and freestyle flying, with engineers fine-tuning the PID and RATE parameters to deliver smooth, crystal-clear 4K/60fps video quality. Optimized for seamless performance with the DJI O4 Air Unit, it ensures unmatched visual clarity and stability. Additionally, pilots can customize the parameters and system settings to match their unique flying style, offering ultimate control and versatility.

PAVO FEMTO FRAME

The Pavo Femto Brushless Whoop Frame delivers a 4% thrust increase in a compact design, providing enhanced power and stability. It features improved connections between the whoop duct and the carbon fiber plate, with added supports and limits for secure assembly. Optimized for the DJI O4 Air Unit, the frame includes a reinforced protective structure for the circuit board.

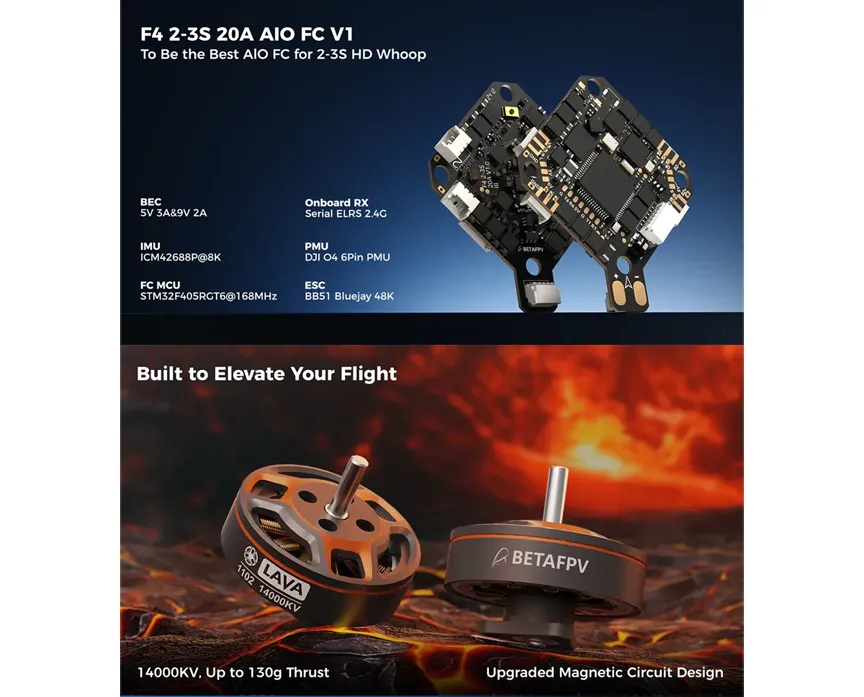

FLIGHT CONTROLLER FOR HD VTX

The Pavo Femto features an F4 2-3S 20A AIO Flight Controller specifically designed for HD VTX. Equipped with a dual BEC solution, it provides stable power outputs of 9V 2A for the DJI O4 Air Unit and 5V 3A for external devices. The 20A ESC ensures agile and dynamic flight performance, while dedicated 6-pin connectors for the DJI O4 Air Unit and conveniently positioned USB ports simplify installation and maintenance. This flight controller delivers exceptional reliability and professional-grade functionality for the Pavo Femto.

HIGH-PERFORMANCE POWER SYSTEM

The Pavo Femto harnesses the power of LAVA Series 1102 Brushless Motors and Gemfan 1611 3-Blade Propellers, achieving a thrust-to-weight ratio exceeding 6.75:1 with its whoop duct optimization. With advanced tile-shaped magnets, an optimized magnetic circuit, and an improved coil filling ratio, the motor delivers approximately 2.1 g/W efficiency during steady flights. Even at a peak thrust of 130g, it maintains an efficiency above 1.5g/W, providing exceptional power while extending flight times.

• HD VTX Bracket: Black O4 Air Unit Bracket (includes shock-absorbing components for O4 Air Unit)
• Electronic Speed Controller (ESC): Onboard 2-3S 20A BLS ESC*4
• Thrust-to-Weight Ratio: 6.75:1 (with DJI O4 Air Unit)
• Recommended Battery: LAVA 2S 450mAh Battery
• Receiver (RX): Onboard Serial ELRS 2.4GHz
• Propellers (Prop): GF 40mm 3-Blade (1611)
• Flight Controller (FC): F4 2-3S 20A AIO FC
• Pavo Femto: Black Pavo Femto Frame
• Motor Connector: JST1.25-3Pin
• Video Transmitter (VTX): None
• Motor: LAVA 1102 | 14000KV
• Flight Time: 5:15 minutes
• Blackbox Memory: 16M
• MCU: STM32F405RGT6
• Wheelbase: 75mm
• Gyro: ICM42688P
• Weight: 46.57g

• FC Firmware and CLI Dump File

• 1x BETAFPV Pavo Femto 75mm Cinewhoop - No FPV System
• 4x Shock-Absorbing Balls for DJI O4 Camera
• 4x GF 1611 3-Blade Propeller
• 1x SH1.0-4Pin Adapter Cable
• 1x Type-C to SH1.0 Adapter
• 1x Hardware Kit
