BETAFPV Matrix 5-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + ELRS RX + OSD
Out of Stock
About this product
Introducing the BETAFPV Matrix 1S Brushless AIO, a beginner-friendly, integrated solution with a durable 1mm-thick board and built-in motor plug for easy installation. Upgraded with a G473 processor, it offers a 55% performance boost over the F411 for precise racing and freestyle control. The premium 5.8GHz 400mW VTX ensures stable, high-quality video transmission.
Features
- Stable, High-Quality Video Transmission
- Premium Video Transmission
- Upgraded Performance
- Simplified Installation
- G473 Processor
- Built Tough

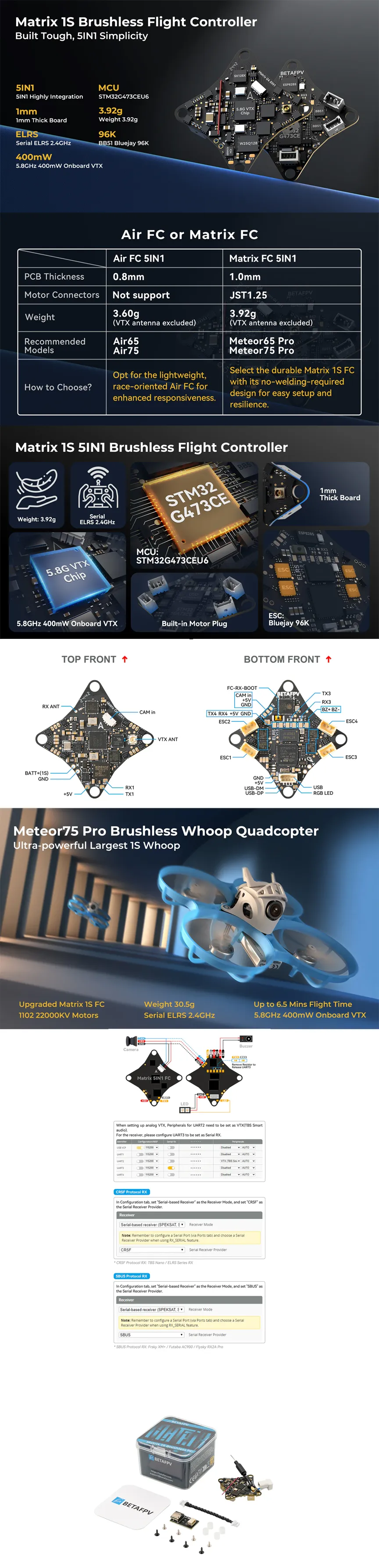

MATRIX AIO
The Matrix 1S Brushless Flight Controller is crafted for beginners and casual pilots, offering enhanced durability with its thicker board and requiring no welding, making it perfect for entry-level users. As a result, it is slightly heavier than the Air Brushless Flight Controller 5IN1 version. For advanced FPV pilots seeking a more responsive, race-oriented experience, the Air Brushless FC 5IN1 version is highly recommended. Both the Matrix 1S Brushless FC and the Air Brushless FC 5IN1 version have undergone rigorous testing and meet competition-grade standards.
Specifications
ELECTRONIC SPEED CONTROLLER (ESC)
- ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
- Digital Signal Protocol: DShot300, DShot600
- Current: 5A continuous, 8A peak
- Power Input: 1S only
VIDEO TRANSMITTER (VTX)
- Frequency: 5.8GHz, 48 channels, with Raceband: 5658~5917MHz
- Operating Temperature: -10°C to +80°C
- Frequency Precision: ±200KHz (Typical)
- Frequency Stability: ±100KHz (Typical)
- Output Power: 25/100/200/400/PIT
- Channel Carrier Error: ±1.5dB
- Channel SEL: SmartAudio 2.0
- All Harmonic: Max -50dBm
- Frequency Control: PLL
- Modulation Type: FM
- Antenna Port: 50 Ω
FLIGHT CONTROLLER (FC)
- UART: UART 1, UART 2 (for VTX), UART 3 (for RX), UART 4
- FC Firmware: Betaflight_4.5.0_BETAFPVG473
- VTX: 5.8GHz, 48 channels, Max 400mW
- Mounting Hole Size: 26mm × 26mm
- RX: Serial ELRS 2.4GHz (V3.4.3)
- BetaFlight OSD: AT7456E
- Battery Connector: BT2.0
- Sensor: Voltage & Current
- MCU: STM32G473CEU6
- Blackbox Memory: 16MB
- USB Port: SH1.0-4Pin
- Motor Plug: JST1.25
- ESC: 5A continuous
- Gyro: ICM42688P
- Weight: 3.92±0.1g
- BEC: 5V, Max 3A
Includes
- 1x BETAFPV Matrix 5-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + ELRS RX + OSD
- 1x SH1.0-4Pin Adapter Cable
- 1x Type-C to SH1.0 Adapter
- 4x Shock Absorbing Balls
- 1x Hardware Kit
More Information
| SKU | 22742 |
|---|---|
| UPC (GTIN) | 723326370014 |
| Manufacturer | BETAFPV |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 5 Amps |
| Flight Controller Processor | G4 |
| Voltage | 1S |
| ESC Firmware | Bluejay |
| Number of ESC's | 4 ESC's in 1 |
