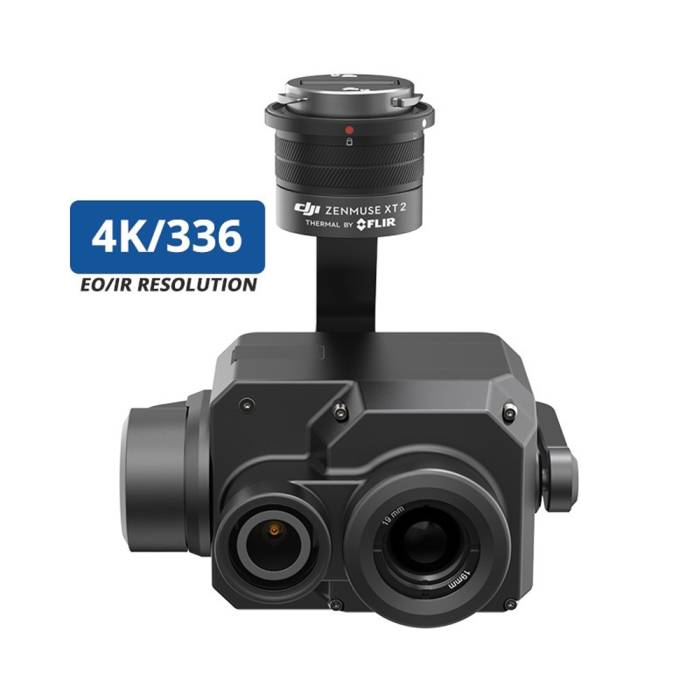

DJI Zenmuse XT2 R 336 13MM (30hz)

More Views

DJI Zenmuse XT2 R 336 13MM (30hz)
The Zenmuse XT2 R is a ground-breaking drone camera with innovative thermal imaging features.
Order today, ships in 2 weeks
$7,287.00
OR
Description

Thermal and Visual Sensors

Announced in March 2018, the Zenmuse XT2 R is a ground-breaking drone camera with innovative thermal imaging features. It is based on the first Zenmuse XT which was first revealed three years prior.

What makes the Zenmuse XT2 R different from its predecessor is it combines the power of thermal and visual sensors. This means you can easily switch from thermal or standard footage capturing in less time. The visual sensor is rated at 12 MP 1/1.7" CMOS while the thermal sensor is a Tau 2 Thermal core <50 MK @ f/1.0 with a maximum frame rate of 30Hz.

FLIR Msx Technology

The dual sensor set-up of the Zenmuse XT2 R is just the tip of the iceberg. DJI partnered with FLIR to achieve a flawless EO/IR gimbal. This partnership also led to the integration of FLIR Multi-Spectral Dynamic Imaging (MSX) technology into the camera. This feature allows you to get more detail on your thermal footage as it overlays the visual image on top of it.

IP44 rating

On top of the dual sensor set-up and FLIR MSX technology, DJI made the Zenmuse XT2 R water and dust resistance (IP33 rating) so you can fly more and worry less.

Features

  • Fully integrated EO/IR camera and gimbal system
  • IP44 Rated Water and Dust Resistance
  • Compatible with Matrice 200 Series and Matrice 600 Pro drones
  • Radiometric images give temperature readings for each pixel
  • Multiple smart temperature features
  • Purpose-built application

Specifications

Camera Module (Thermal)
Thermal Imager Uncooled VOx Microbolometer
Resolution 336 x 256
Digital Zoom 1x, 2x, and 4x
Pixel Pitch 17 μm
Spectral Band 7.5-13.5 μm
Full Frame Rates 30 Hz
Exportable Frame Rates <9 Hz
Thermal Sensitivity (NETD) <50 mK at f/1.0
Scene Range High Gain: -13 to 212°F / -25 to 100°C
Low Gain: -40 to 1,022°F / -40 to 550°C
File Storage microSD Card
Photo Format JPEG, TIFF, and R-JPEG
Video Format 8 bit: MOV and MP414 bit: TIFF Sequence, SEQ
Gimbal
Angular Vibration Range +/- 0.01 Degree
Mount Detachable
Controllable Range Tilt: +30 to -90 Degrees
Pan: +/- 320 Degrees
Mechanical Range Tilt: +45 to -130 Degrees
Pan: +/- 330 Degrees
Roll: -90 to +60 Degrees
Camera
Sensor 1/1.7" CMOS
Effective Pixels: 12 MP
Lens Prime Lens
Focus at 8mm
FOV 57.12 Degrees x 42.44 Degrees
Digital Zoom 1x, 2x, 4x, and 8x
Photo Formats JPEG, TIFF, R-JEPG
Video Formats 8 bit: MOV, MP4

14 bit: TIFF sequence, SEQ**



Video Resolution 4K Ultra HD: 3840 x 2160 29.97 fps
FHD: 1920 x 1080 29.97 fps
Modes Capture, Record, and Playback
Photography Modes Single Shot
Burst Shooting (3/5 Frames)
Interval (2/3/4/7/10/15/20/30 seconds)
Anti-Flicker Auto, 50 Hz, and 60 Hz
Storage MicroSD Card (up to 128 GB, UHS-3 Required)
Supported File Systems FAT 32: (s32 GB)
exFAT: (>32 GB)
Lens
Field of view (FOV) f/1.25 35×27 Degrees 1.889 mr
f/1.25 25×19 Degrees 1.308 mr
f/1.25 17×13 Degrees 0.895 mr
Focus Distance Minimum Distance: 3.2 cm
Hyperfocal Distance: 2.1 m
Hyperfocal Depth of Field: 1.1 m
General
Dimension 4.6 x 4.4 x 4.9" / 11.8 x 11.2 x 12.6 cm
Packaging Info
Package Weight 3.64 lb
Box Dimensions (LxWxH) 8.45 x 8.45 x 6.05"

Includes

  • 1 x DJI Zenmuse XT2 R Camera and Gimbal System
Additional Information
SKU 12048
Manufacturer DJI
UPC (GTIN) No
