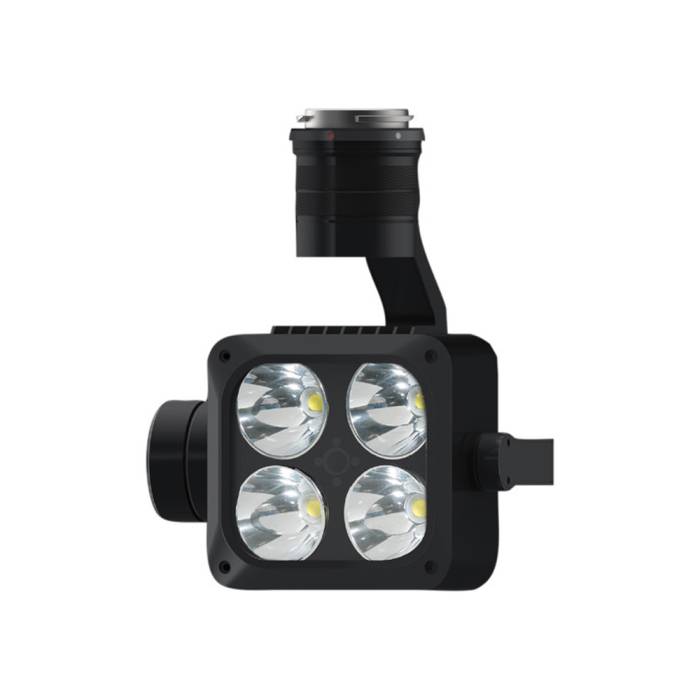

DJI Wingsland Z15 Gimbal Spotlight
Add a high-powered LED drone spotlight to your safety or infrastructure program with this Wingsland Z15 Gimbal Spotlight from DJI.
Order today, ships in 2 weeks
$2,500.00
OR
Description

Add a high-powered LED drone spotlight to your safety or infrastructure program with this Wingsland Z15 Gimbal Spotlight from DJI. The spotlight is compatible with the DJI Matrice 200 and 200 v2 series drones and connects to the SkyPort connection on the drone. It can be installed side-by-side with a Zenmuse gimbal camera if desired.

The Z15 spotlight operates close to a 500' maximum range, and its four LEDs with a 10,200-lumen brightness can light up an approximate area of 6000' from an altitude of up to 400'. It features a built-in air-cooling system and a safety protection system that protects the light when it reaches 194°F. The spotlight can run in three different modes to match your environment and situation: Always On, Flashing, and SOS. Use the Z15 to light the way in fire safety, search and rescue, law enforcement, and infrastructure maintenance applications.

Applications

Firefighting

  • Light up a path to guide the public to a safe place after a fire or a natural disaster

Emergency Response/Search and Rescue

  • Locate missing persons in hard-to-reach areas when visibility is low

Law Enforcement

  • Act as a flexible light source for crowd management, forensic investigations, or routine patrols

Infrastructure/Facility Repair and Maintenance

  • When power suddenly cuts off or when structures collapse at night, the Wingsland Z15 can be used to light up a large area from the air so that emergency repairs can be conducted in an efficient, timely manner.

Features

  • Bright 10,200-lumen drone spotlight
  • 48W power
  • Four LED units
  • 15° field of view
  • Fits DJI Matrice 200 and 200 v2 series drones
  • Dual downward gimbal support alongside Zenmuse payloads
  • An air-cooling system with intelligent temperature protection over 194°F
  • 48V maximum power
  • 6112' maximum illumination area at 394' altitude
  • 492' maximum range
  • Multiple modes: Always On, Flashing, SOS

Specifications

Light

  • Brightness 10,200 Lumens
  • Field of View (FOV) 15°
  • Working Distance 492.1' / 150 m
  • Illumination Area 6112.2' at 393.7' / 1863 m at 120 m
  • 1059' at 164' / 323 m at 50 m

Gimbal

  • Mounting Configuration Detachable
  • Number of Axes 3-Axis
  • Angular Vibration Range ±0.02°
  • Control Range Tilt: +90 to -90°
  • Yaw: ±160°

General

  • Power Consumption Spotlight: 40 W
  • Total: 48 W
  • Voltage 6 V
  • Cooling Fan, Heatsink
  • Protection Features Internal Temperature Protection to 194°F / 90°C
  • Operating Temperature 14 to 122°F / -10 to 50°C
  • Storage Temperature -4 to 140°F / -20 to 60°C
  • Dimensions 5.9 x 4.3 x 3.9" / 15 x 11 x 10 cm
  • Weight 17.6 oz / 500 g

Includes

  • 1 x DJI Wingsland Z15 Gimbal Spotlight
Additional Information
SKU 12117
Manufacturer DJI
UPC (GTIN) No
