DJI O3 Air Unit Camera Module

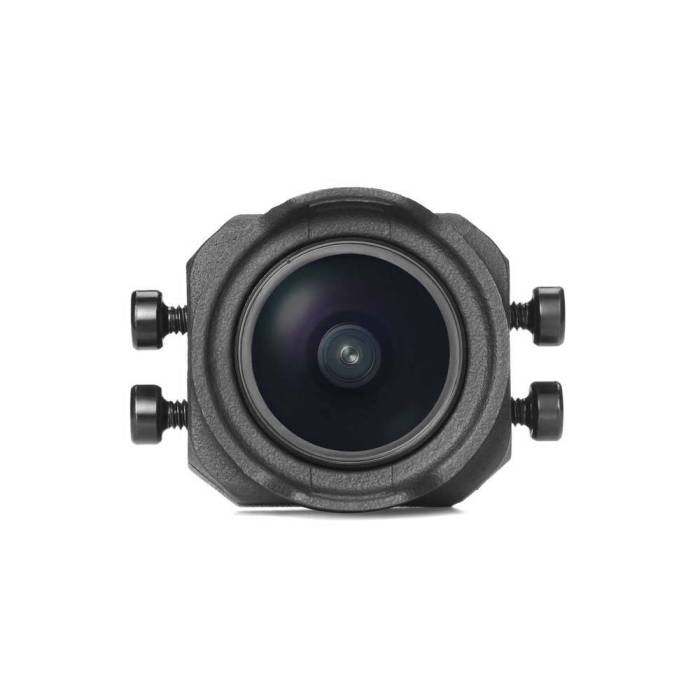

The DJI O3 Air Unit Camera Module is a single camera module with a quick-release design for convenient replacement. This camera module features a 1/1.7-Inch CMOS sensor, 155° Super-Wide FOV, f/2.8 aperture, and more!

About this product

The DJI O3 Air Unit Camera Module is a single camera module with a quick-release design for convenient replacement. This camera module features a 1/1.7-Inch CMOS sensor, 155° Super-Wide FOV, f/2.8 aperture, and more!

Compatible with the DJI O3 Air Unit Transmission Module and works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

Features

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • Camera Sensor
    • 1/1.7-inch CMOS
    • Effective Pixels: 48 MP
  • Camera Lens
    • FOV: 155°
    • Equivalent Focal Length: 12.7 mm
    • Focal Length: 2.34 mm
    • Aperture: f/2.8
    • Focus Mode: FF
    • Focus Range: 0.6 m to ∞
  • Camera ISO Range
    • 100-6400 (Auto)
    • 100-25600 (Manual)
  • Camera Shutter
    • Rolling Shutter
  • Camera FOV: 155°
    • Camera Video Resolution
    • With DJI Goggles 2:
      • 4K@50/60fps
      • 2.7K@50/60/100fps
      • 1080p@50/60/100fps

    • With DJI FPV Goggles V2:
      • 4K@50/60fps
      • 2.7K@50/60/100/120fps
      • 1080p@50/60/100/120fps
  • Effective Pixels: 48 MP
  • Video Format: MP4
  • Weight: Approx. 8.3 g (coaxial cable included)
  • Dimensions (L×W×H): 21.2×20×19.5 mm
  • Weight (coaxial cable included): Approx. 8.3 g
  • Coaxial Cable Length: 115 mm

IMPORTANT NOTES

  • The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
  • Video latency data varies depending on the headset you use. With DJI Goggles 2 at 1080p/100fps video transmission quality, the lowest latency is 30ms. With DJI FPV Goggles V2, at 810p/120fps video transmission quality, the latency does not exceed 28 ms.
  • Compared to using DJI FPV Goggles V2 and DJI FPV Remote Controller.4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.

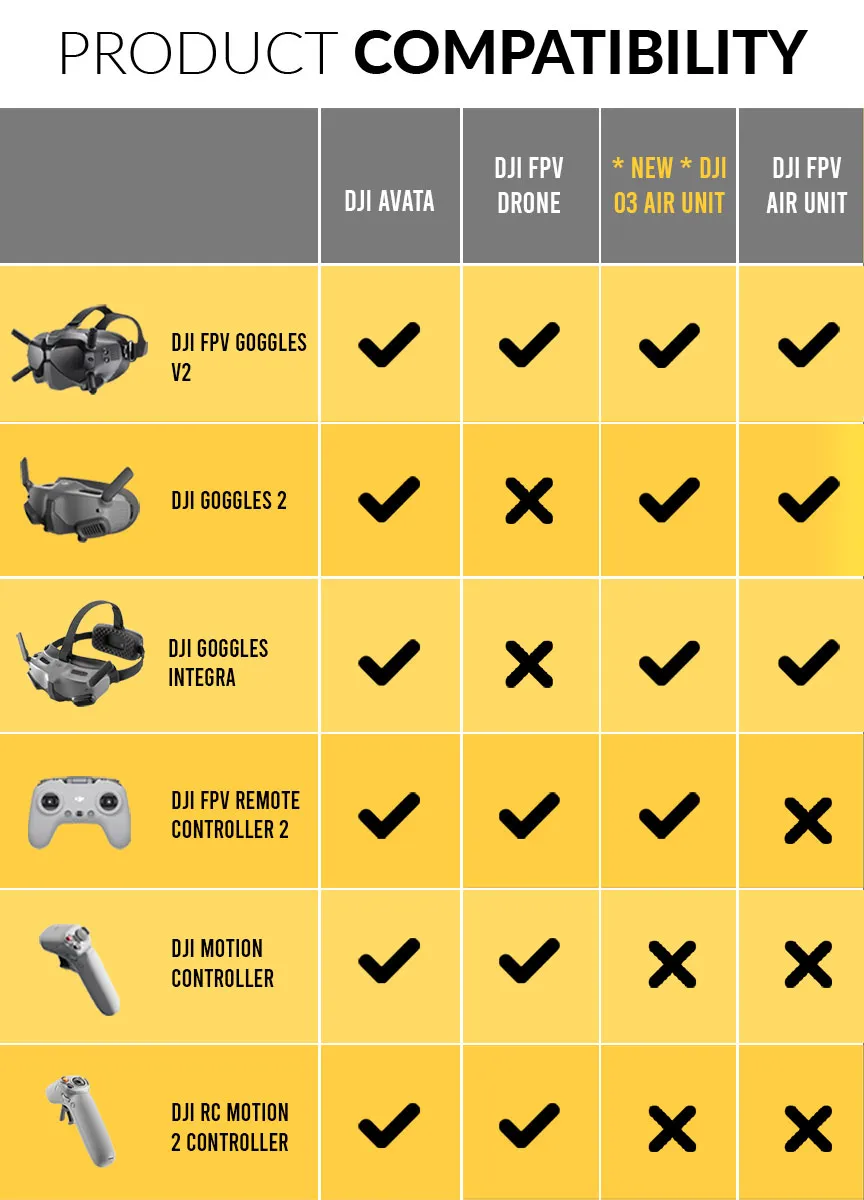

  • This device is compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2.
  • 4K/60FPS videos only support 16:9 aspect ratio. A 4:3 aspect ratio is not supported.

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x DJI O3 Air Unit Camera
  • 1x Coaxial Cable
  • 4 M2 Screws

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 19874
Manufacturer DJI
UPC (GTIN) 190021061750
