DJI FPV Combo + FREE Lumenier Duality HD Stubby 2.4/5.8GHz Dual-Band Antenna
DJI FPV Combo + FREE Lumenier Duality HD Stubby 2.4/5.8GHz Dual-Band Antenna
About this product
Free Upgrade Offer!
For a limited time get 1x FREE Lumenier Duality HD Stubby 2.4/5.8GHz Dual-Band Antenna for DJI Digital HD FPV Goggles V2 when you add both the DJI FPV Combo and the antenna to your shopping cart. (Suggested 4x Duality antennas for best overall performance)

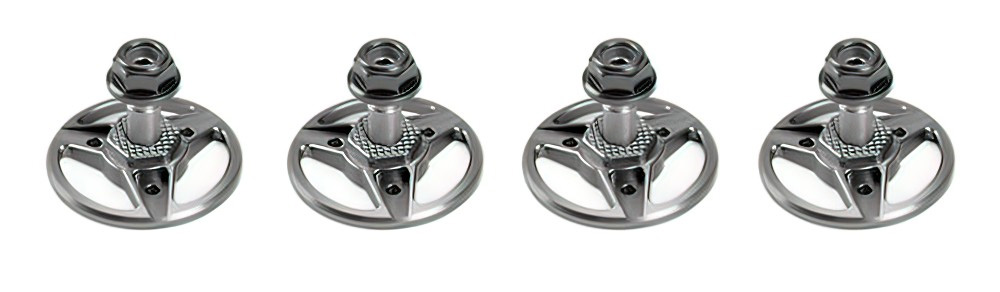

Or choose to upgrade your motors for FREE with Aikon DJI FPV Prop Adapter Mounts (4pcs), allowing you to fly with standard FPV Drone props!! Just add them to cart along with the bundle and you'll see the discount applied in cart automatically.

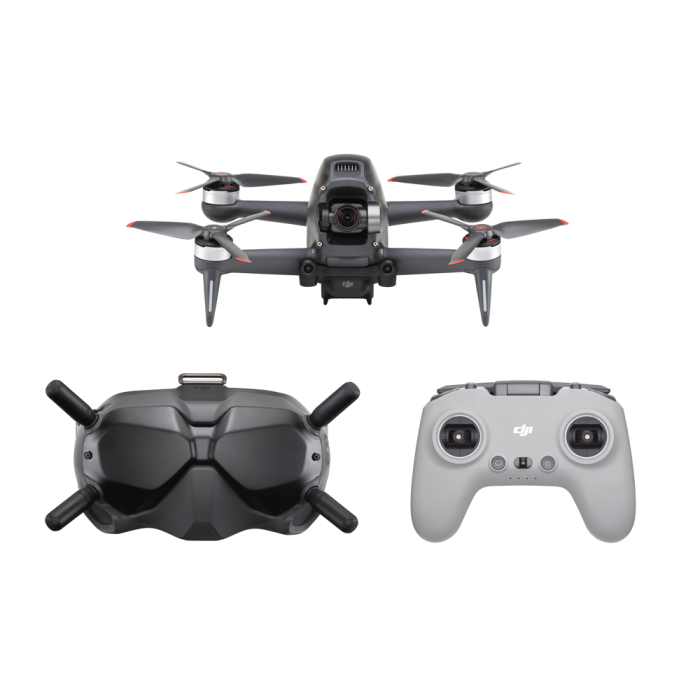

DJI FPV COMBO KIT
Rip through the clouds with speed, power, and complete control. Go into the beyond…and redefine flying. Fly through the sky in ways that seem impossible! We never lost our passion for flying, and with DJI FPV, those passions have turned imagination into reality. With this immersive and intuitive aerial platform, get ready to go into the great beyond.
FPV Has Never Looked This Good!
Sleek and aerodynamic, the DJI FPV aircraft delivers powerful propulsion, battery life, and wind resistance, making this system as capable as it is visually stunning. DJI FPV stands out in more ways than one. Sporting front LEDs and aircraft arm lights with customizable color, DJI FPV allows pilots to make their aircraft as unique as they are.
Features
- Immersive Flight Experience 4K/60fps.
- Crystal-clear real-time video transmission, even at distances of up to 10 km.
- Super-Wide FOV HD Low-Latency Transmission.
- Brand-New S Mode Intuitive Motion Controller option.
- Emergency Brake and Hover.
- Additional safety layer with built-in Automatic Dependent Surveillance-Broadcast (ADS-B).
- Easily Replaceable Parts.
- Audience Mode.
- Smartphone Live View Edit and Share Fly Spots.
- Intelligent Flight Batteries.
- Forward and downward obstacle sensing.
- Ready to fly! Everything you need, assembled and ready to go in one box.
Next-Level Immersion. Unparalleled Control.
Feel the thrill of immersive flight provided by the DJI FPV Goggles V2 and DJI FPV’s super-wide 150° FOV. HD video transmission at up to 120fps gives you an ultra-smooth, real-time view of your flight.
150° Super-Wide Angle 84° 150° Super Wide Angle 120fps Max Frame Rate
Whether you’re a seasoned FPV pilot or a complete beginner, DJI FPV offers three intuitive flight modes that let anyone fly confidently from day one.
S Mode
Get the dynamic look of FPV footage easily in S mode. This hybrid flight mode combines the freedom of flying manually with the simplified controls of previous DJI drones.
N Mode
Ideal for new users, N mode offers immersive flight with traditional drone flight controls along with DJI safety features like obstacle sensing.
M Mode
Fly in M mode for complete, limitless control and the full FPV flight experience. Customize parameters and enjoy flight and footage unlike anything else.
Emergency Brake and Hover
Even for experts, manual FPV flight can be intimidating. That’s why DJI FPV comes with an emergency brake and hover feature. Simply press this button on the remote controller while flying in any mode, at any speed, and the aircraft will stop and hover stably within a few seconds.
Advanced Safety Features
An auxiliary bottom light, Smart Return to Home (RTH), Low Battery RTH, and forward and downward obstacle sensing are all integrated into DJI FPV to help ensure a safe flight, even at high speeds.
Sensing System
Forward and downward obstacle sensing is integrated into DJI FPV to help ensure a safe flight, even at high speeds.
The Imaging Power You Expect from DJI
Get results that match the intensity of your flights.
Powerful propulsion capabilities combined with a 150° super-wide FOV provide an unrivaled view. 4x Slow Motion, RockSteady stabilization, and distortion correction give pilots even smoother, more dramatic results.
Unreal Footage
The DJI FPV aircraft can record 4K/60fps video at up to 120 Mbps, capturing crisp details that make the footage look as exhilarating as the flight.
RockSteady Stabilization
No matter how dynamic your maneuvers get, RockSteady EIS technology ensures your footage is ultra-smooth. H.264 and H.265 video coding formats are both supported, giving you more video editing options.
Meet O3
The DJI O3 (OcuSync 3.0) Transmission System was adapted to match the unique needs of DJI FPV. Enjoy crystal-clear real-time video transmission, even at distances of up to 10 km.
Video Transmission Latency: 28 ms
- Video transmission latency of DJI FPV is lower than 28 ms. Video Transmission Bitrate: 50 Mbps.
- Video transmission bitrate of DJI FPV goes up to 50 Mbps. Video Transmission Range: 10 km
- DJI FPV supports an HD video transmission range up to 10 km.
Auto-Switching for Seamless Signal
DJI FPV supports auto-switching between 2.4 and 5.8GHz frequencies and provides a video transmission bitrate of up to 50 Mbps, significantly reducing stutter and compression artifacts. High-gain antennas on the aircraft include three transmitters and four receivers to enhance the signal, resulting in a stable, reliable video feed.
* If the signal is disconnected, DJI FPV will automatically enable fail-safe RTH.
Committed to Safe Skies
An Optimized Experience
DJI FPV gives users an additional layer of safety with built-in Automatic Dependent Surveillance-Broadcast (ADS-B). This system receives flight location information of manned aircraft in your area and will send warnings on the Goggles V2, providing enough time to avoid any manned aircraft nearby.
Easily Replaceable Parts
The gimbal camera, landing gear, and top shell of the DJI FPV aircraft are all modular and easily replaceable, making repairs more convenient. DJI Care Refresh is also available, offering coverage for a wide range of damage and giving you greater peace of mind as you fly.
The DJI Virtual Flight App
The DJI Virtual Flight app allows users to practice flying in lifelike, simulated scenarios before entering the real world. Simply connect the DJI FPV Goggles V2 and remote controller, and you’re ready to master flight in a risk-free virtual environment.
Bring Someone Along with Audience Mode
DJI FPV supports Audience Mode. Just set other DJI FPV Goggles V2 units to your aircraft channel and you’re ready to share the view from above.
The DJI Fly App
Smartphone Live View Edit and Share Fly Spots
The DJI Fly app can display the live view from the goggles on a smartphone when connected via cable. With the DJI Fly app, you can playback footage, edit, and share your work on social media, all with just a few taps. You can also discover popular aerial photography spots near you with the Fly Spots feature.
It’s Ready to Fly and So Are You
Forget complicated wiring and assembly. The DJI FPV Combo offers everything you need, assembled and ready to go in one box. Simply turn on and activate the aircraft, remote controller, and goggles and go fly.
Specifications
DJI FPV DRONE
- Takeoff Weight: Approx. 795 g
- Dimensions: 255×312×127 mm (with propellers),178×232×127 mm (without propellers)
- Diagonal Distance 245 mm
- Max Ascent Speed M mode: No limitS mode: 15 m/s N mode: 8 m/s
- Max Descent Speed M mode: No limitS mode: 10 m/s N mode: 5 m/s
- Max Speed: 140 kph
- M mode: 39 m/s (27 m/s in Mainland China)
- S mode: 27 m/s
- N mode: 15 m/s
- Max Acceleration: 0-100 kph: 2 s (in ideal conditions while flying in M mode)
- Max Service Ceiling Above Sea Level: 6,000 m
- Max Flight Time: Approx. 20 mins (measured while flying at 40 kph in windless conditions)
- Max Hover Time: Approx. 16 mins (measured when flying in windless conditions)
- Max Flight Distance: 16.8 km (measured while flying in windless conditions)
- Max Wind Speed Resistance: 39-49 kph (25-31 mph)
- Operating Temperature: -10° to 40° C (14° to 104° F)
- Transmitter Power (EIRP): 2.400-2.4835 GHz
- FCC: ≤ 31.5dBm
- CE: ≤ 20 dBm
- SRRC: ≤ 20 dBm
- MIC: ≤ 20 dBm 5.725-5.850 GHz
- Number of Antennas: Four
- GNSS: GPS+GLONASS+GALILEO
- Hovering Accuracy Range "Vertical:
- ±0.1 m (with Vision Positioning)±0.5 m (with GPS positioning)
- Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS positioning)
- Supported SD Cards microSD (up to 256 GB)
DJI FPV GOGGLES V2
- Weight: Approx. 420 g (headband and antennas included)
- Dimensions: "184×122×110 mm (antennas excluded) 202×126×110 mm (antennas included)"
- Screen Size: 2-inches (×2)
- Screen Refresh Rate: 144 Hz
- Communication Frequency:2.400-2.4835 GHz 5.725-5.850 GHz
- Transmitter Power (EIRP): 2.400-2.4835 GHz<br>
- FCC: ≤ 28.5 dBm<br>CE: ≤ 20 dBm<br>SRRC: ≤ 20 dBm
- MIC: ≤ 20 dBm 5.725-5.850 GHz
- FCC: ≤ 31.5 dBm<br>CE: ≤ 14 dBm
- SRRC: ≤ 19 dBm"
- Communication Bandwidth: 40 MHz (Max.)
- Live View Mode :Low-Latency Mode: 810p/120fps ≤ 28ms
- High-Quality Mode: 810p/60fps ≤ 40ms* (A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°)
- Max Video Bitrate: 50 Mbps
- Transmission Range: 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
- Video Format: MP4 (Video format: H.264)
- Supported Video and Audio Playback Formats: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Power Input: (Dedicated DJI Goggles batteries or other) 11.1.-25.2 V batteries.
- FOV FOV: 30° to 54°; Image size: 50-100%
- Interpupillary Distance Range: 58-70 mm
- Supported microSD Cards: microSD (up to 256 GB)
DJI REMOTE CONTROLLER
- Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
- Transmitter Power (EIRP): 2.400-2.4835 GHz
- FCC: ≤ 28.5 dBm
- CE: ≤ 20 dBm
- SRRC: ≤ 20 dBm
- MIC: ≤ 20 dBm, 5.725-5.850 GHz
- FCC: ≤ 31.5 dBm
- CE: ≤ 14 dBm
- SRRC: ≤ 19 dBm
- Max. Transmission distance: 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
- Gimbal Dimensions: 190×140×51 mm
- Weight: 346 g
- Battery Life: Approx. 9 hours
- Charging Time: 2.5 hours
DJI FPV GIMBAL CAMERA
- Sensor: 1/2.3” CMOS
- Effect pixels: 12 million
- Lens: FOV: 150°
- 35mm Format Equivalent: 14.66 mm
- Aperture: f/2.8
- Focus Mode: Fixed Focus
- Focus Range: 0.6 m to ∞
- ISO: 100-12800
- Shutter Speed: 1/50-1/8000 s
- Still Photography Modes: Single shot
- Max Image Size: 3840×2160
- Photo Format: JPEG
INTELLIGENT FLIGHT BATTERY
- Model: BWX170-2000-22.2
- Battery Type: 6 Cell LiPo battery
- Rated Capacity: 2,000 mAh
- Max Charging Power: 90 W
- Charge Temperature: 5-40℃
- Voltage 22.2 V (standard)
- Charging Voltage Limit 25.2 V
- Energy 44.4 [email protected]
- Discharge Rate 10C (typical)
- Weight Approx. 295 g
Note:
- Before flying DJI FPV, check local laws and regulations. Ensure that your flights are conducted safely and in accordance with all local laws and regulations.
- The 150° FOV is only applicable when shooting at 50 or 100 fps.
- Obstacle sensing is only available when the aircraft is in N mode. In this mode, DJI FPV will automatically decelerate when it detects obstacles, but it will not automatically stop.
- To ensure flight safety when using M mode, it is recommended to have another person present to observe the flight environment. To obtain a more precise control experience when using M mode, adjust the F1 screw on the back of the thrust control stick (right side if flying in Mode 1, left side if flying in Mode 2) to disable recentering.
- The DJI FPV aircraft supports two video coding formats, while the DJI FPV Goggles V2 only supports H.264.
- In 810p/120fps Smooth mode, the video transmission latency is lower than 28ms; in 810p/60fps HD mode, the video transmission latency is lower than 40ms.
- FCC-compliant. Measurements were taken in unobstructed environments free of interference. Always follow local rules and regulations and fly your drone within your visual line of sight unless otherwise permitted.
- The highest video transmission bitrate is 50 Mbps. Measured in an open, outdoor environment with no obstacles or interference.
- DJI Care Refresh (DJI FPV) is a service plan that provides you with greater peace of mind during flight. DJI Care Refresh (DJI FPV) provides replacements for a small additional cost. If you purchase DJI Care Refresh (2-Year Plan), you will enjoy a 1-year extension of official coverage.
- The DJI Virtual Flight app currently supports only iOS devices.
- This function will be available in a future firmware update. Transmitted images from the goggles to the app can be sent to a smartphone via cable (USB-C to USB-C or USB-C to lightning).
- The Fly Spots feature is currently available only in Mainland China. All flight locations displayed by the Fly Spots feature are based on voluntarily-shared location tags from SkyPixel users. DJI never collects or shares user data without user consent. Always check and follow the applicable rules wherever you fly.
Includes
- 1x DJI FPV Drone
- 1x DJI FPV Intelligent Flight Battery
- 1x DJI FPV Propellers (Pair)
- 1x DJI FPV Gimbal Protector
- 1x DJI FPV Top Shell
- 1x DJI FPV Remote Controller 2
- 1x DJI FPV Goggles V2
- 1x DJI FPV Goggles Antenna (Dual Band)
- 1x DJI FPV Goggles Battery
- 1x DJI FPV Goggles Power Cable (USB-C)
- 1x DJI FPV Goggles Headband
- 1x DJI FPV Goggles Foam Padding
- 1x DJI FPV AC Power Adapter
- 1x DJI FPV AC Power Cable
- 1x USB-C Data Cable
- 1x USB-C OTG Cable
- 1x Spare Control Sticks (Pair)
Suggested Upgrades for Best Performance (Not Included)
The DJI FPV Drone is a great system out of the box, but a few simple upgrades like Antennas can give you even better performance! We suggest the gear below as an upgrade to the stock DJI equipment for the best experience.
Antennas:
- 4 Pack Combo - Lumenier Duality HD Stubby 2.4/5.8GHz Dual-Band Antenna 4x Combo for DJI Digital HD FPV Goggles V2
- Single Antennas - Lumenier Duality HD Stubby 2.4/5.8GHz Dual-Band Antenna for DJI Digital HD FPV Goggles V2
Videos
More Information
SKU | 15306 |
---|---|
UPC (GTIN) | 190021029491 |
Manufacturer | DJI |
NDAA Compliant | No |
Item Returns | This item can be returned |
