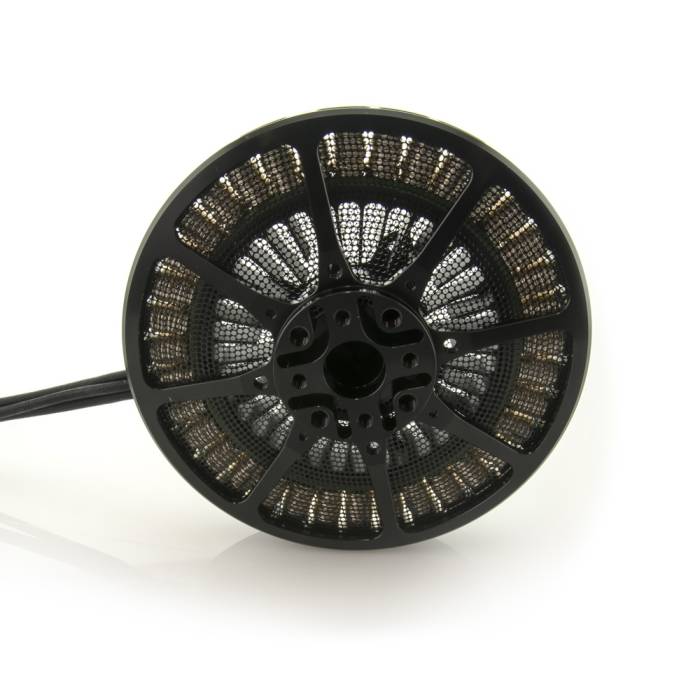

Tiger Motor U8 LITE 150kv

The U8 series motor by Tiger Motors is the ultimate heavy-lift multi-rotor motor. This motor shines in efficiency and quality, giving you the longest flight times possible.

Specifications

• Diameter(mm): 87.1
• Height(mm): 27.05
• Shaft Diameter(mm): 15
• Configuration: 36N42P
• Lead Spec: 90mm
• Ingress Protection Level: IP35
• KV: 150
• Weight(g): 239
• Idle Current(A); @18V (A): 1
• Internal Resistance(mΩ): 85±5
• Propeller: 28"-30"/22"
• Volts(V): 6s Lipo/12s Lipo
• Max Current(A): 31.5/25
• Max Input Power/W: 756/12000
• ESC: AIR 40A, ALPHA 60A LV, FLAME 60A HV, ALPHA 60A HV
• Quadcopter(KG)/28CF: 8
• Hexacopter(KG)/28CF: 12
• (KG)/28F: 16

Includes

• 1x Φ32*10*3MM CPC
• 1x Φ11*14.5 pin
• 4x M3*12mm screws
• 4x M4*12mm screws
