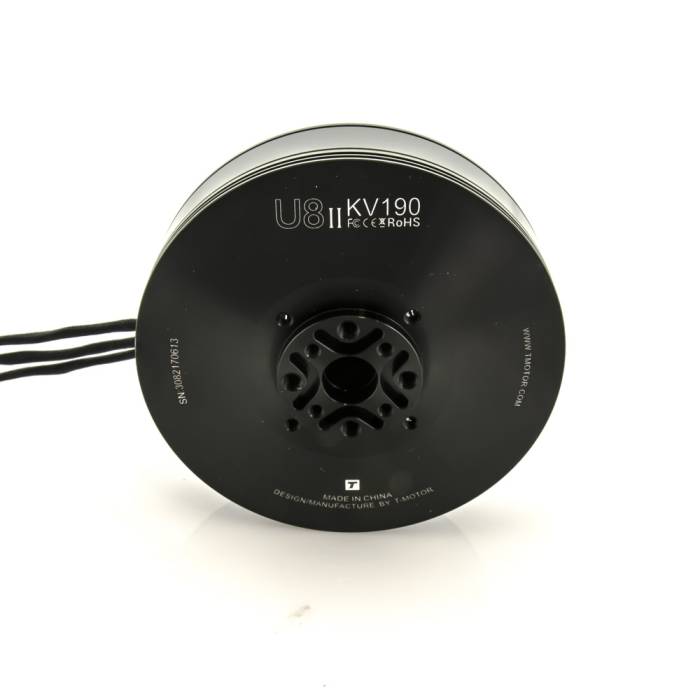

Tiger Motor U8 II KV190

The U8 II series motor by Tiger Motors is the ultimate heavy-lift multi-rotor motor. This motor shines in efficiency and quality, giving you the longest flight times possible.

Specifications

• Diameter(mm): 87.1
• Height(mm): 29.1
• Shaft Diameter(mm): 15
• Configuration: 36N42P
• Lead Spec: 90mm
• Ingress Protection Level: IP55
• KV: 190
• Weight:(g): 277
• Idle Current(A); @18V (A): 1.3
• Internal Resistance(mΩ): 48±3
• Propeller: 28"-29"
• Volts(V): 6s Lipo
• Max Current(A): 43.3
• Max Input Power/W: 1039.2
• ESC: FLAME 60A HV, AIR 40A, ALPHA 60A
• Quadcopter(KG)/28CF: 12
• Hexacopter(KG)/28CF: 18
• (KG)/28CF: 24

Includes

• 1x Φ32*10*3mm CPC
• 4x M3*12mm Screws
• 1x Φ11*14.5 Pin
• 4x M4*12mm Screws
