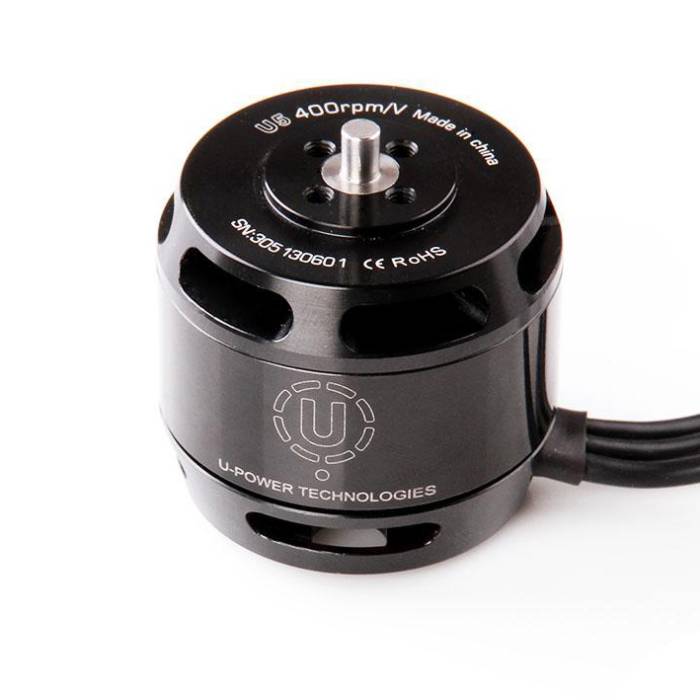

Tiger Motor U5 400kv, V2 U-Power Professional Motor

New Tiger U5 v2 Power series motors (400kv) are water and dust resistant motors designed for maximum reliability and long life. U-series motors are tested to military standards and offer smooth, quiet running with superb efficiency.

The T-Motor U5 is recommended for operation on 6s with T-Motor CF Props 15"x5" or 16"x5.4" for hexacopters up to 9kg or octocopter up to 12kg. This motor arrives with 600mm cables and connectors already soldered.

Specifications

• KV................................................................................................................400
• Internal resistance...............................................................................116mΩ
• Max. efficiency current.............................................................(10-18A)>84%
• Max Continuous Power(W)180S..........................................................850W
• Max Continuous current(A)180S.............................................................30A
• No.of Cells(Lipo)......................................................................................3-8S
• ldle current(10)@10v(A)..........................................................................0.3A
• Weight(g)..................................................................................................156g
• Motor Dimension(Dia.*Len)..............................................Φ42.5×37.5mm
• Shaft Diameter........................................................................................4mm
• Configuration....................................................................................12N14P

Includes

• 1x U5 400kv, V2 U-Power Professional Motor
