Tiger Motor MN1806 + S12A, 1400KV Xpack (4 pcs set)
$179.99
Out of Stock
Only left for same day shipping. Order now!

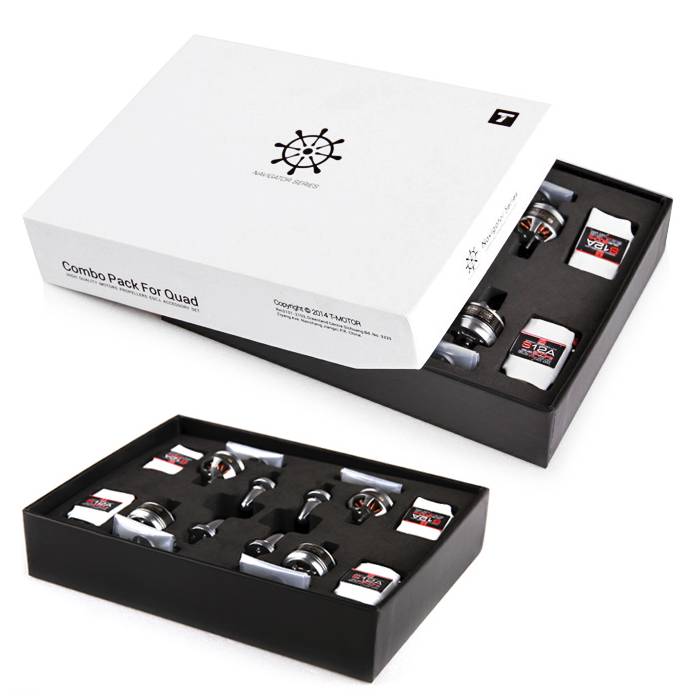

Tiger Motor MN1806 + S12A, 1400KV Xpack (4 pcs set)
The 1806 Combo Pack showcases the quality that Tiger Motors is known for. These motors and ESC's were selected specifically for quadcopters and sold together at a discount.
About this product
The 1806 Combo Pack showcases the quality that Tiger Motors is known for. These motors and ESC's were selected specifically for quadcopters and sold together at a discount. This combo includes:
- 4x MN1806, 1400KV Motors
- 4x S12A ESC's
Specifications
KV..............................................................................................................1400
Configuration....................................................................................12N14P
Stator Diameter....................................................................................18mm
Stator Length..........................................................................................6mm
Shaft Diameter.......................................................................................2mm
Motor Dimensions(Dia.*Len)...............................................Φ23×18.5mm
Weight (g)...................................................................................................18g
ldle current(10)@10v(A)..........................................................................0.2A
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)180S............................................................12A
Max Continuous Power(W)180S...........................................................96W
Max. efficiency current.................................................................(2-7A)>85%
internal resistance..............................................................................325mΩ
internal resistance..............................................................................325mΩ
More Information
| SKU | 2485 |
|---|---|
| Manufacturer | Tiger Motors |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Motor Stator Size | 1806 |
| Popo Compatible | No |
