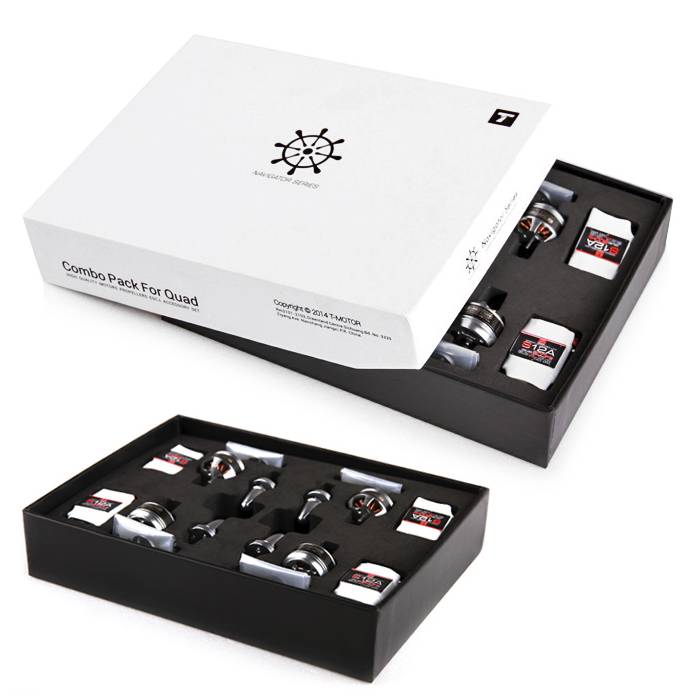

Tiger Motor MN1804 + S12A, 2400KV Xpack (4 pcs set)
The 1804 Combo Pack showcases the quality that Tiger Motors is known for. These motors and ESC's were selected specifically for quadcopters and sold together at a discount.
About this product
The 1804 Combo Pack showcases the quality that Tiger Motors is known for. These motors and ESC's were selected specifically for quadcopters and sold together at a discount. This combo includes:
- 4x MN1804, 2400KV Motors
- 4x S12A ESC's
Specifications
KV..............................................................................................................2400
Configuration....................................................................................12N14P
Stator Diameter....................................................................................18mm
Stator Length..........................................................................................4mm
Shaft Diameter.......................................................................................2mm
Motor Dimensions(Dia.*Len)...............................................Φ23×16.5mm
Weight (g)...................................................................................................16g
ldle current(10)@10v(A)..........................................................................0.7A
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)180S............................................................10A
Max Continuous Power(W)180S...........................................................110W
Max. efficiency current.................................................................(2-5A)>81%
internal resistance..............................................................................230mΩ
More Information
| SKU | 2483 |
|---|---|
| Manufacturer | Tiger Motors |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Motor Stator Size | 1804 |
| Popo Compatible | No |
