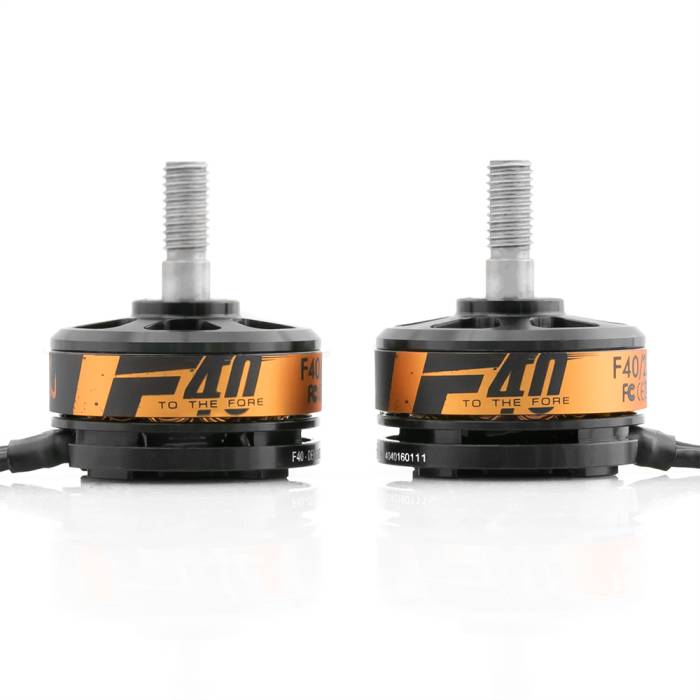

Tiger Motor F40 2300Kv FPV Series Motor (Set of 2)

The F40 2300Kv FPV Series Motor has been design and built specifically for FPV Racing. Using a steel shaft and a unique structural design to prevent bending and deformation on crashes, these motors are built to take a punch. They are very quick and have fast response. Also uses a creative way of heat dissipation, reducing 15% more heat than other motors. The F-Series FPV motors by Tiger Motors are some of the best FPV racing motors around.

 Includes:

• 2x F40 2300Kv Motors
• 2x Locking Nuts
• 8x Socket Head Screws

Specifications

• KV: 2300
• Configu ration: 12N14P
• Stator Diameter: 22mm
• Stator Length: 5mm
• Shaft Diameter: 4mm
• Motor Dimensions (Dia.*Len): Φ27.5×17.7mm
• Weight (g): 27g
• ldle current(10)@10v(A): 0.8A
• No.of Cells(Lipo): 3-4S
• Cable length: 100mm
