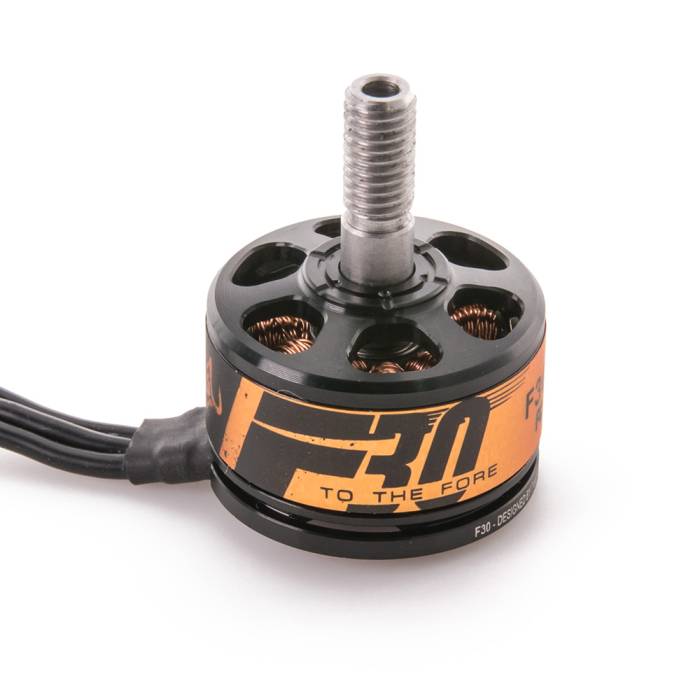

Tiger Motor F30 2300Kv FPV Series Motor

The F30 2300Kv FPV Series Motor has been design and built specifically for FPV Racing. Using a steel shaft and a unique structural design to prevent bending and deformation on crashes, these motors are built to take a punch. They are very quick and have fast response. Also uses a creative way of heat dissipation, reducing 15% more heat than other motors. The F-Series FPV motors by Tiger Motors are some of the best FPV racing motors around.

 Includes:

• 1x F30 2300Kv Motors
• 1x Locking Nuts
• 4x Socket Head Screws

Specifications

• KV: 2300
• Configuration: 12N14P
• Stator Diameter: 18mm
• Stator Length: 6mm
• Shaft Diameter: 3mm
• Motor Dimension (Dia.*Len): Φ23×31mm
• Weight (g): 21g(Excluding Cable）
• ldle current@10v(A): 0.9A
• No.of Cells(Lipo): 3-4S
• Cable length: 100mm
