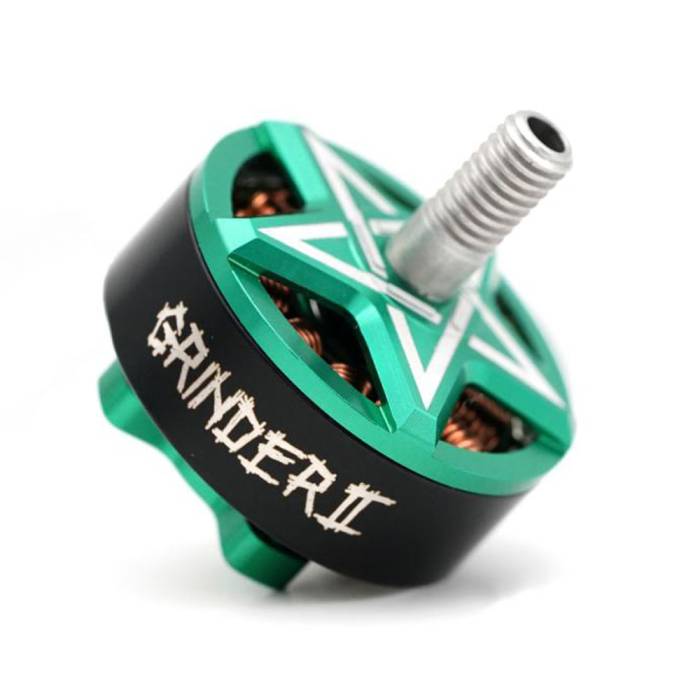

TBS Grinder II 2207 2500KV Freestyle Motor

The Grinder V2 Freestyle Motor is made for hardcore FPVers who misjudge power loops and literally "hit" gaps. Essentially, pilots who aren't afriad to take risks on the sticks. This motor won't burn a hole in your wallet and will keep up with the craziest freestyle pilots.

The high-torque 2207 stator will get you out of bad situations and bring you some nice cruising at mid to high throttles at up to 5S voltages. Go out there and shred some sky and crush some bandos!

Specifications

• Stator Size (Diameter): 22mm
• Kv: 2500kv
• Magnets N52SH: Curved
• Windings: 8 turn DLRK
• Shaft Length (mm): 11.5mm
• Shaft Diameter (mm): 3mm
• Shaft material: Steel
• Bearing: NSK639
• Weight (With Wires) (g): 33g
• Cells (Lipo): 4-5S
• Max Current (A): 45A
• Max Burst Current (A): 50A
• Internal Resistance (Rm): 47Ω
• Wire Spec (AWG): 20#
• Base Mounting Pattern: 16x16mm
• Base Mounting Thread: M3 Thread
• Motor Overall Dimensions: φ27.5mm*17.7mm
