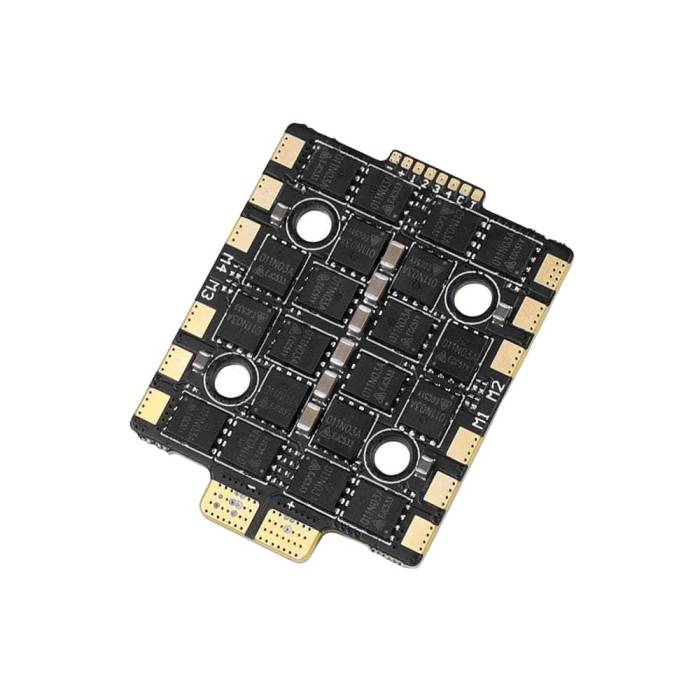

T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC - 20x20

The T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC features a 20x20mm mounting pattern, with 8S capability and big MOSFETs. It also features high current, high withstand voltage, low internal resistance, and real-time temperature monitoring.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Highly consistent signal transmission
• Real-time temperature monitoring
• real-time temperature monitoring
• Symmetrical MOS layout design
• No desync with high KV motors
• 20x20mm mounting pattern
• telemetry transmission
• High withstand voltage
• Low internal resistance
• Shorter tracks
• Big MOSFETs
• High current

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Input Signal: DShot 150/300/600/1200/MultiShot/OneShot
• Mounting Pattern: 20x20mm M3
• Max. Continuous Current: 60A
• PWM Frequency: 16-96KHz
• Input Voltage: 3-8S LiPo
• Max Burst Current: 70A
• Dimensions: 36x47mm
• Firmware: BLHeli_32
• Telemetry: Yes
• Weight: 14g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x T-Motor Mini F60A 3-8S BLHeli_32 4in1 ESC - 20x20
• 1x Amass XT60H-M Cable
• 1x FC Connector
• 10x Grommets
• 1x Capacitor
