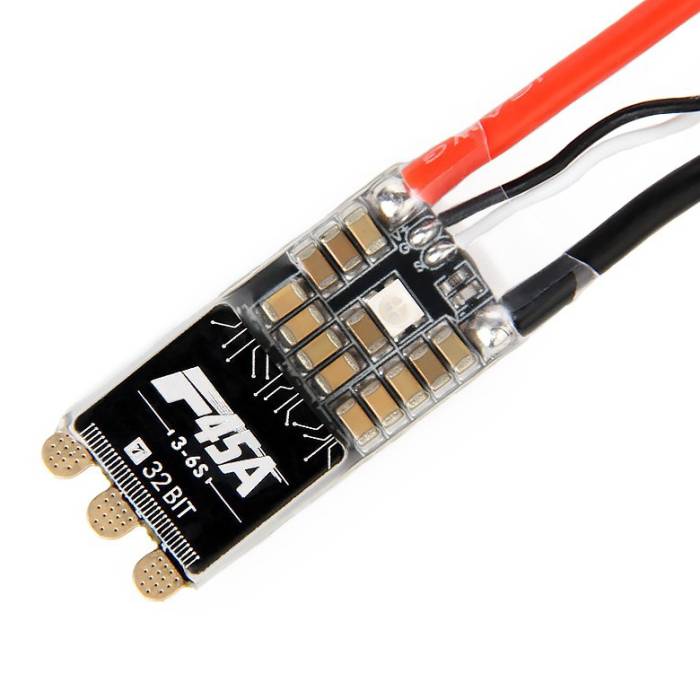

T-Motor F45A 3-6S BLHeli_32 ESC

T-Motor updated their F45 ESC with BLHeli_32 firmware. This tiny ESC packs 45A into an industrialized PCB layout made with premium features such as a 32bit main control chip, programmable LEDs, and BLHeli_32 firmware.

Features

• Tiny yet powerful: Tiny size helps save frame space while maintaining 45A current with industrialized PCB layout and selected materials.
• 32bit Main Control Chip: Compared with traditional MCU of 8 bit, 32bit stm32f051 main control chip enjoys the advantage of fast computing speed and multiple functions.
• Fast Response Speed: Prompt and accurate response on throttle signal receiving for the euphoria from zero lag operation.
• LED: Highlight programmable RBG LED lights are available to decorate the frame meanwhile making frames visible at night.
• Original BLHeli_32 Firmware: Original BLHeli_32 firmware with powerful performance and diverse functions capable of ESC parameter setting and firmware upgrading makes the ESC far more reliable and efficient.

Specifications

• Model No: F45A 32bit V2
• Con. Current: 45A
• Peak Current (10S): 55A
• BEC: No
• Lipo: 3-6S
• Weight: 10g
• Size: 33 x 16 x 6mm
• LED: RGB
• Applications: 170-450 Multirotors

Includes

• 1 x T-Motor F 45A 3-6S ESC BLHeli_32
