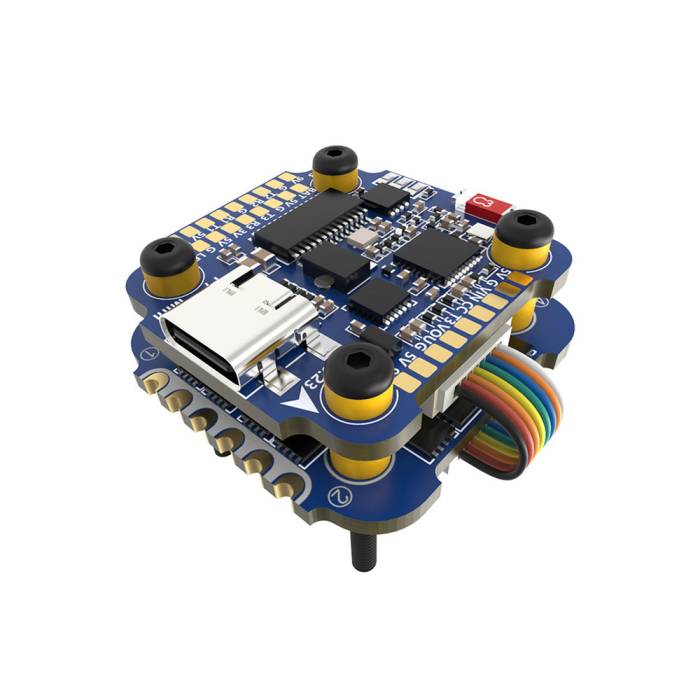

SpeedyBee F7 Mini 35A 3-6S 8-bit Flight Controller Stack

The popular SpeedyBee F7 stack has shrunk into a mini 20x20 stack! With the same features as wireless FC and ESC tuning, change motor directions and more through the SpeedyBee app!

Also supports DJI VTX as well as analog video with its independent 9V 2A BEC and 5V 2A BEC. Get your quad outfitted with the latest tech and highest quality components with SpeedyBee.

Specifications

SpeedyBee F7 Mini FC

• Input Voltage: 3-6S
• MCU: STM32F722
• Gyro: MPU6000
• Barometer: No
• OSD Chip: AT7456E
• Bluetooth: Yes
• DJI Air Unit Soldering Pads: Supported
• BlackBox: 8MB Flash
• Current Sensor: Yes
• BEC: Yes
• ESC Signal Pads: 4
• UARTs: 3(UART1, UART2, UART3)
• ESC Telemetry: R4(UART4)
• LED Pad: Used for WS2812 LED
• Buzzer: Yes
• Firmware: BetaFlight(Default), EMUFlight, INAV
• Firmware Target: SPEEDYBEEF7MINI
• Mounting Dimensions: 20 x 20mm, 3.5mm hole diameter
• Weight 5.7g

SpeedyBee 35A BLHeli_S ESC

• Power Input: 3-6S
• Firmware: BLHeli_S JH40
• Max Continuous Current: 35A
• Max Burst Current: 45A
• ESC Protocol: DSHOT300/600
• Current Sensor: Yes
• Mounting Dimensions: 20 x 20mm, 3.6mm hole diameter
• Weight: 7g

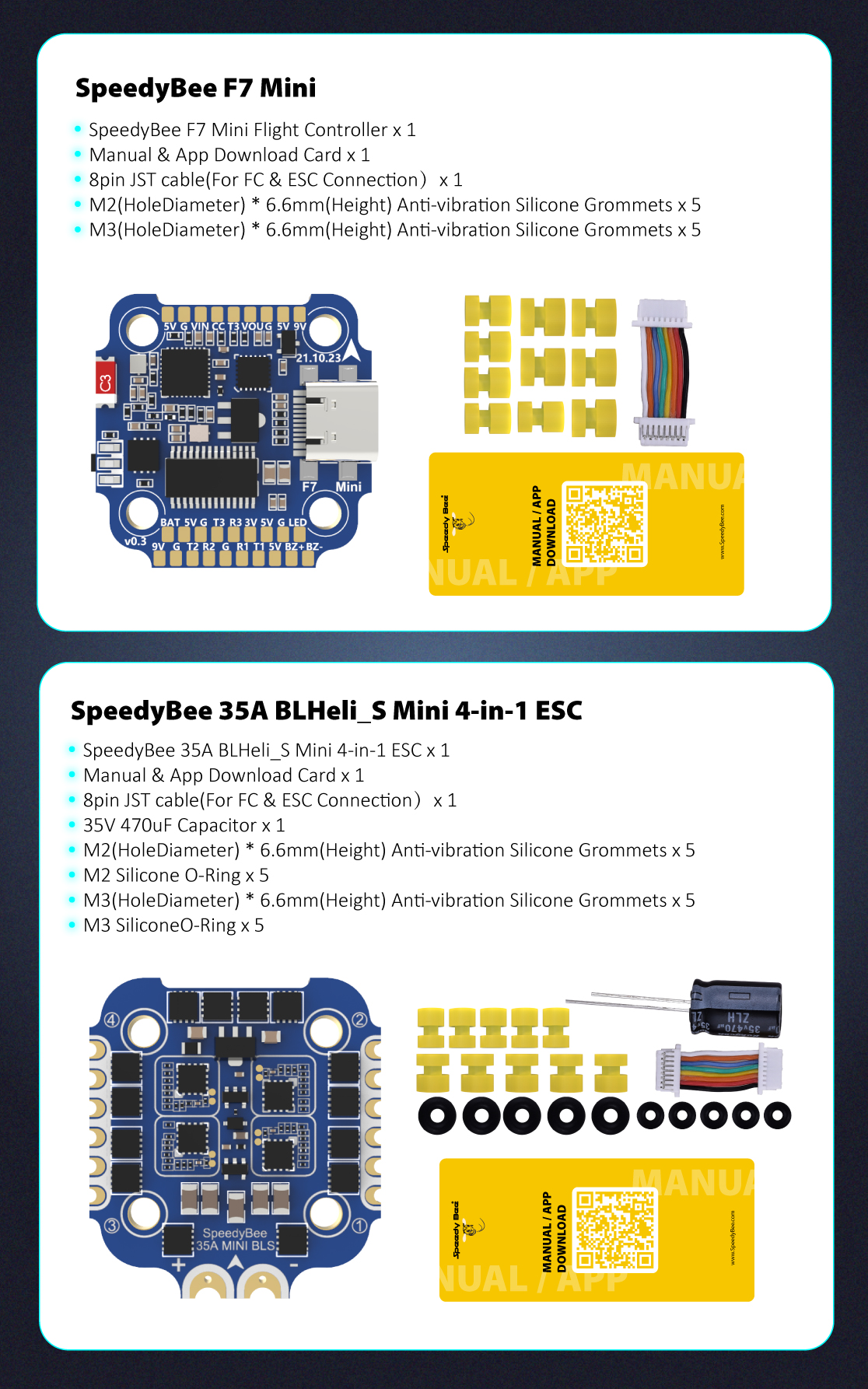

Includes

• 1x SpeedyBee F7 Mini 35A 3-6S 20x20 Stack/Combo
