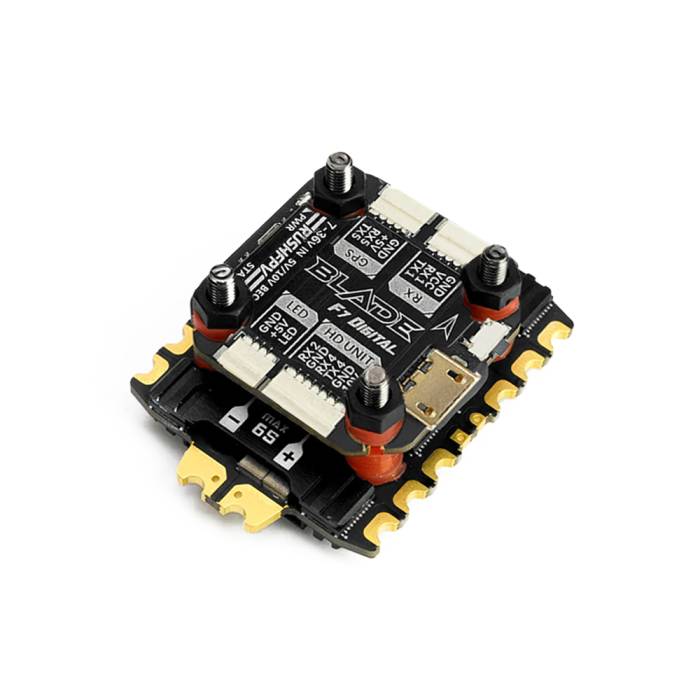

RUSHFPV RUSH BLADE Mini Stack - F722 DJI FC + 60A 3-6S BLHeli_32 Racing Edition ESC - 20x20

The RUSHFPV RUSH BLADE Mini Stack features the mini F722 DJI Flight Controller and Racing Edition 60A 3-6S BLHeli_32 4-in-1 mini ESC, which can handle up to 6S input voltage. This stack is great for the DJI Digital FPV System.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

• 16M SPI Flash Memory Blackbox
• 60A Racing Edition Mini ESC
• 20x20mm Mounting Pattern
• MPU 6 Series GYRO
• 3~6S Lipo Input
• F722 DJI Mini FC

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

F722 DJI FLIGHT MINI CONTROLLER

• Dimensions: 29mm x 29mm x 6.8mm
• Firmware Target: Rush_Blade_F7_HD
• Ports: 6 x PWM, 5 x UART, 1 x I2C
• LED: Supports WS2812 LED Strip
• MCU: STM32 F722 RET6 216MHz
• BEC Output: 5V/2A 10V/1.5A
• Weight: 5g (Without Cables)
• Input Voltage: 7-36V (3-6S)
• Mounting Holes: 20x20mm
• Blackbox: 16Mb SPI Flash
• GYRO: MPU6000

60A RACING EDITION MINI ESC

• BL32 FW: RUSH_BLADE_RACING
• Dimension: 43.5*33*9mm
• Input Voltage: 3-6S Lipo
• PWM FREQ: 24-48KHz
• Rated Current: 60A
• Peak Current: 70A
• Weight：15.5g

(INSERT VTX TITLE HERE IN BOLD CAPS)

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x RUSH BLADE 60A Racing Edition Mini ESC
• 1x RUSH BLADE F722 Mini Flight Controller
• 1x 110MM Air Unit Cable
• 2x 60MM LED/RX Cable
• 1x 110MM NAVI Cable
• 1x 60MM ESC Cable
• 5x 8MM Grommet
• 5x 5MM Grommet
